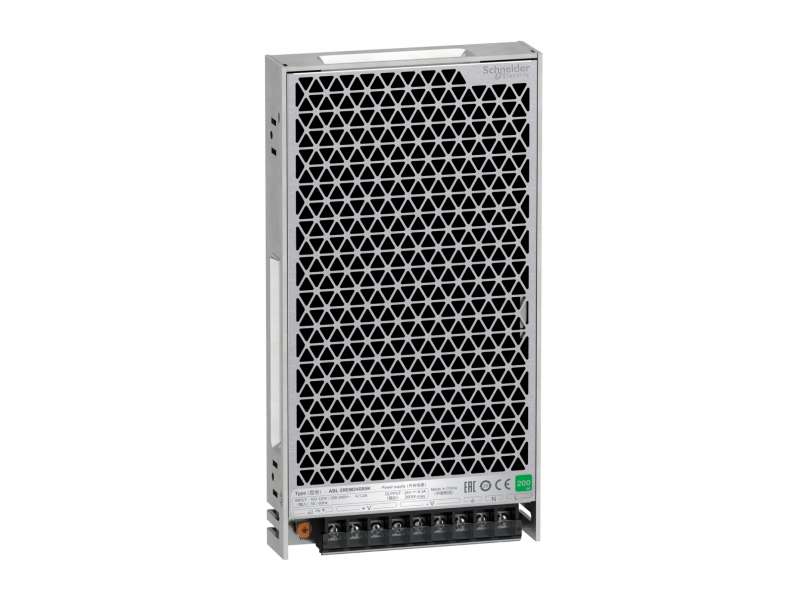

Schneider Electric Monofazno napajanje, 100...240V ulaz, 24V DC izlaz, nazivne snage 200W, struje 8,3A;ABL2REM24085K
Monofazno napajanje, 100...240V ulaz, 24V DC izlaz, nazivne snage 200W, struje 8,3A...
Cena bez pdv-a: 5.685,00 |
Cena sa pdv-om: 6.822,00 |
Monofazno napajanje, 100...240V ulaz, 24V DC izlaz, nazivne snage 200W, struje 8,3A
| range of product |
Easy Modicon ABL2
|
|
|---|---|---|
| product or component type |
Power supply
|
|
| power supply type |
Regulated switch mode
|
|
| rated power in W |
200 W
|
|
| input voltage |
100...120 V AC single phase
200...240 V |
|
| output voltage |
24 V DC
|
|
| power supply output current |
8.3 A
|
|
| operating position |
Any position
|
|
| vibration resistance |
4 gn (f= 10…500 Hz) conforming to EN/IEC 61131-2
|
|
| name of test |
Electromagnetic hypersensitivity (EHS) conforming to EN 61000-6-2 level A
|
| input voltage limits |
90...132 V
180...264 V |
|
|---|---|---|
| network frequency |
47...63 Hz
|
|
| inrush current |
60 A at 100...120 V AC
60 A at 200...240 V AC |
|
| cos phi |
0.5
|
|
| efficiency |
89 %
|
|
| power dissipation in W |
24.7 W
|
|
| current consumption |
2 A at 240 V
|
|
| input protection type |
Integrated fuse (not interchangeable)
|
|
| output voltage limits |
20.4...27.6 V
|
|
| line and load regulation |
+/- 1 %
|
|
| holding time |
>= 12 ms at 115 V
|
|
| output protection type |
Against overload, protection technology: 1.1...1.5 x In
Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 1.1...1.5 x In Thermal, protection technology: 1.1...1.5 x In |
|
| connections - terminals |
For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12
|
|
| marking |
CE
|
|
| electromagnetic compatibility |
Immunity to electromagnetic interference conforming to EN 55022 class B
|
|
| mounting support |
DIN rail with accessory
Panel mounting with accessory |
|
| operating altitude |
5000 m
|
|
| output coupling |
Series
|
|
| overvoltage category |
II
|
|
| meantime between failure [MTBF] |
600000 h at 25 °C
|
|
| status LED |
1 LED (green)output voltage
|
|
| width |
215 mm
|
|
| height |
115 mm
|
|
| depth |
30 mm
|
|
| net weight |
0.73 kg
|
| product certifications |
EAC
RoHS |
|
|---|---|---|
| IP degree of protection |
IP20 conforming to IEC 62368-1
|
|
| ambient air temperature for operation |
-30…70 °C (with power derating of 2.5 % per °C)
|
|
| ambient air temperature for storage |
-40…85 °C
|
|
| relative humidity |
10…95 %
|
|
| overvoltage category |
Class I conforming to IEC 62368-1
|
|
| pollution degree |
2
|
|
| dielectric strength |
2000 V between input and ground
|
-
Phaseo Easy ABL2REM24085K
