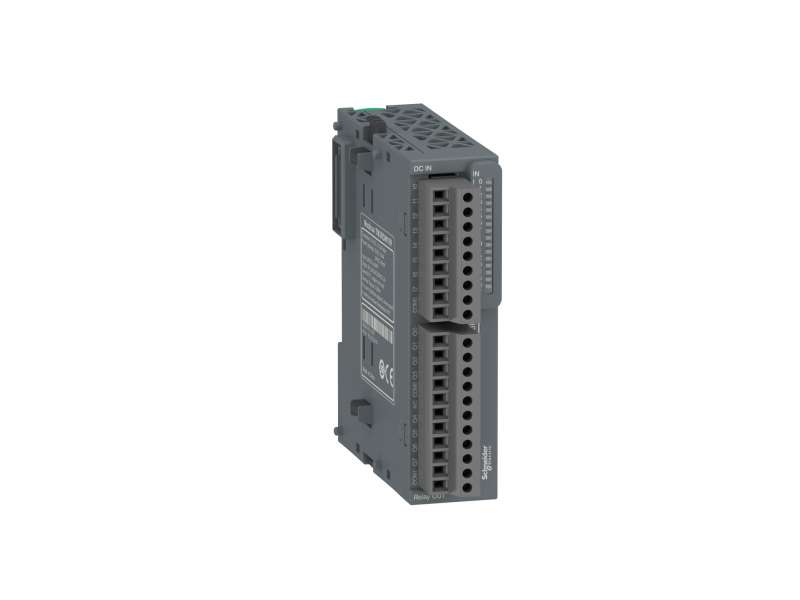

Name: Schneider Electric Modul za proširenje, Modicon TM3 sa 16 I/O ( 8 digitalnih ulaza, 8 digitalnih izlaza) ; TM3RDM16R
Brand: Schneider Electric
SKU: TM3RDM16R
Price: 13243.20 RSD
Availability: OutOfStock

Schneider Electric Modul za proširenje, Modicon TM3 sa 16 I/O ( 8 digitalnih ulaza, 8 digitalnih izlaza) ; TM3RDM16R

Schneider Electric Modul za proširenje, Modicon TM3 sa 16 I/O ( 8 digitalnih ulaza, 8 digitalnih izlaza)...

Brand: Schneider Electric
Šifra: TM3RDM16R
Dostupnost: Proveriti dostupnost

Cena bez pdv-a: 11.036,00

Cena sa pdv-om: 13.243,20

Kolicina:

Opis
Specifikacija

Schneider Electric Modul za proširenje, Modicon TM3 sa 16 I/O ( 8 digitalnih ulaza, 8 digitalnih izlaza)

Main
range of product	Modicon TM3
product or component type	Discrete I/O module
range compatibility	Modicon Easy M200
discrete input number	8 for input conforming to IEC 61131-2 Type 1
discrete input logic	Sink or source (positive/negative)
discrete input voltage	24 V
discrete input current	5 mA for input
discrete output type	Relay normally open
discrete output number	8
discrete output logic	Positive or negative
discrete output voltage	24 V DC for relay output 240 V AC for relay output
discrete output current	2000 mA for relay output

Complementary
discrete I/O number	16
current consumption	70 mA at 5 V DC via bus connector (at state on) 40 mA at 24 V DC via bus connector (at state on)
discrete input voltage type	DC
voltage state 1 guaranteed	15...28.8 V for input
current state 1 guaranteed	>= 2.5 mA (input)
voltage state 0 guaranteed	0...5 V for input
current state 0 guaranteed	<= 1 mA (input)
input impedance	4.7 kOhm
response time	4 ms (turn-on) 4 ms (turn-off)
maximum current per output common	4 A
mechanical durability	20000000 cycles
minimum load	10 mA at 5 V DC for relay output
local signalling	1 LED per channel (green) for I/O state
electrical connection	11 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs 9 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs
maximum cable distance between devices	Unshielded cable: <50 m for input Unshielded cable: <150 m for output
insulation	Between input and internal logic at 500 V AC Non-insulated between inputs Between input groups and output groups at 1500 V AC Between open contact at 750 V AC Between output and internal logic at 500 V AC Non-insulated between outputs
marking	CE
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	84.6 mm
width	27.4 mm
net weight	0.118 kg

Environment
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 6 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3
resistance to magnetic fields	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to fast transients	2 kV for relay output conforming to EN/IEC 61000-4-4 1 kV for input conforming to EN/IEC 61000-4-4
surge withstand	2 kV output common mode conforming to EN/IEC 61000-4-5 1 kV input common mode conforming to EN/IEC 61000-4-5
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6
electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
ambient air temperature for operation	0…55 °C horizontal installation
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage)
IP degree of protection	IP20 with protective cover in place
pollution degree	2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail 1 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.7 Hz on panel 2 gn at 8.7…150 Hz on panel
shock resistance	15 gn for 11 ms

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	190 g
Package 1 Height	124 mm
Package 1 width	72 mm
Package 1 Length	103 mm
Unit Type of Package 2	S03
Number of Units in Package 2	26
Package 2 Weight	5440 g
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Offer Sustainability
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
