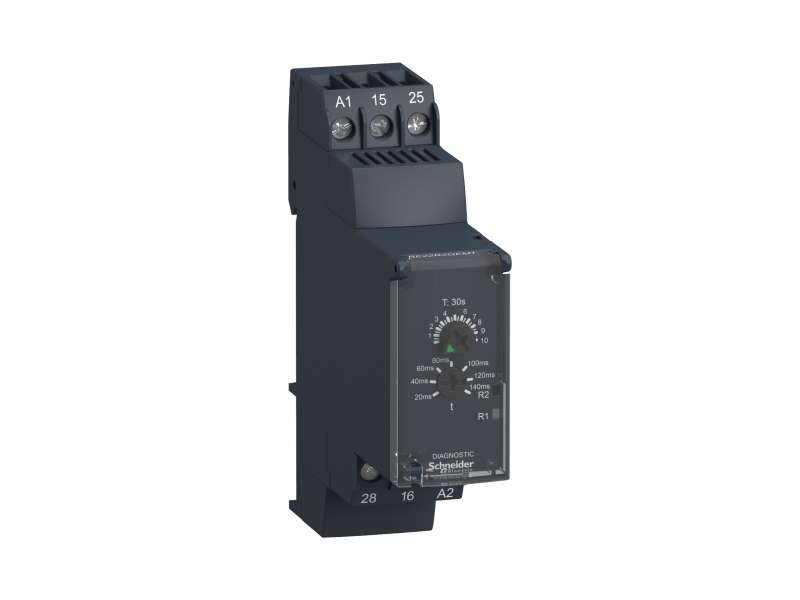

Schneider Electric Zvezda-trougao vremenski relej - 0.3s…30s - 380…415V AC - 2C/O;RE22R2QEMT
Harmony, Modular timing relay, 8 A, 2 CO, 0.3 s…30 s, star delta, 380…415 V AC/DC...
VAT-exclusive price: 12.937,00 |
VAT-inclusive price: 15.524,40 |
Harmony, Modular timing relay, 8 A, 2 CO, 0.3 s…30 s, star delta, 380…415 V AC/DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Star-delta relay
|
|
| discrete output type |
Relay
|
|
| device short name |
RE22
|
|
| nominal output current |
8 A
|
| contacts type and composition |
2 C/O timed contact, cadmium free
|
|
|---|---|---|
| time delay type |
Qe
|
|
| time delay range |
0.3...30 s
|
|
| control type |
Rotary knob
Diagnostic button |
|
| [Us] rated supply voltage |
380...415 V AC 50/60 Hz
|
|
| Release input voltage |
<= 38 V
|
|
| voltage range |
0.85...1.16 Us
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| connections - terminals |
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
|
| tightening torque |
0.6…1 N.m conforming to IEC 60947-1
|
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.5 % conforming to IEC 61812-1
|
|
| temperature drift |
+/- 0.05 %/°C
|
|
| voltage drift |
+/- 0.2 %/V
|
|
| setting accuracy of time delay |
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
|
|
| insulation resistance |
100 MOhm at 500 V DC conforming to IEC 60664-1
|
|
| Recovery time |
120 ms on de-energisation
|
|
| immunity to microbreaks |
10 ms
|
|
| power consumption in VA |
15 VA at 380 V AC
|
|
| switching capacity in VA |
2000 VA
|
|
| minimum switching current |
10 mA at 5 V DC
|
|
| maximum switching current |
8 A
|
|
| maximum switching voltage |
250 V AC
|
|
| electrical durability |
100000 cycles, 8 A at 250 V, AC-1
100000 cycles, 2 A at 24 V, DC-1 |
|
| mechanical durability |
10000000 cycles
|
|
| Rated impulse withstand voltage |
5 kV for 1.2…50 µs conforming to IEC 60664-1
|
|
| Power on delay |
100 ms
|
|
| creepage distance |
4 kV/3 conforming to IEC 60664-1
|
|
| overvoltage category |
III conforming to IEC 60664-1
|
|
| safety reliability data |
B10d = 250000
MTTFd = 273.9 years |
|
| mounting position |
Any position
|
|
| mounting support |
35 mm DIN rail conforming to EN/IEC 60715
|
|
| status LED |
LED backlight green (steady) for dial pointer indication
LED yellow (steady) for output relay energised LED yellow (fast flashing) for timing in progress and output relay de-energised LED yellow (slow flashing) for timing in progress and output relay energised |
|
| width |
22.5 mm
|
|
| net weight |
0.09 kg
|
| dielectric strength |
2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
|
|
|---|---|---|
| standards |
IEC 61812-1
UL 508 |
|
| directives |
2006/95/EC - low voltage directive
2004/108/EC - electromagnetic compatibility |
|
| product certifications |
-
Zelio Time RE22R2QEMT
