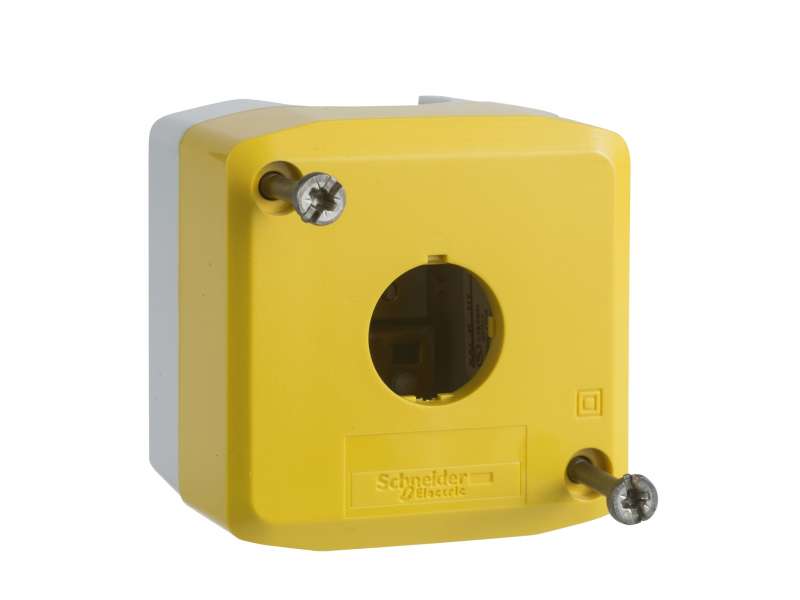

Schneider Electric žuto prazno kućište sa svetlosivom osnovom - 1 otvor; XALK01
Empty enclosure, Harmony XALD, XALK, plastic, yellow lid for push button 22mm, 1 cut out; XALK01...
VAT-exclusive price: 1.419,00 |
VAT-inclusive price: 1.702,80 |
Empty enclosure, Harmony XALD, XALK, plastic, yellow lid for push button 22mm, 1 cut out; XALK01
| Range of product | Harmony XALK |
|---|---|
| Product or component type | Empty control station |
| device short name | XALK |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Control station application |
Emergency stop function Emergency switching off function |
| Number of cut-out | 1 cut-out |
| colour of base of enclosure | Light grey (RAL 7035) |
| colour of cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| cable entry |
1 knock-out for cable entry, clamping capacity: 14 mm 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| IP degree of protection |
IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| Assembly style | For customer assembly |
|---|---|
| Number of horizontal rows | 1 |
| Number of vertical rows | 1 |
| Net weight | 0.136 kg |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mounting of block |
Front mounting Rear mounting |
| Electrical composition code |
SR1 SF1 MR1 MF1 |
| Main group | 1 cut-out |
| Group of product | Standard yellow |
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| overvoltage category | Class II conforming to IEC 60536 |
| NEMA degree of protection |
NEMA 13 NEMA 4X |
| IK degree of protection | IK03 conforming to EN 50102 |
| Standards |
EN/IEC 60947-5-5 UL 508 EN/IEC 60947-5-4 JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-1 JIS C8201-1 |
