Schneider Electric žuti trepćući blok 24V 10J + opcije;XVBC8B8

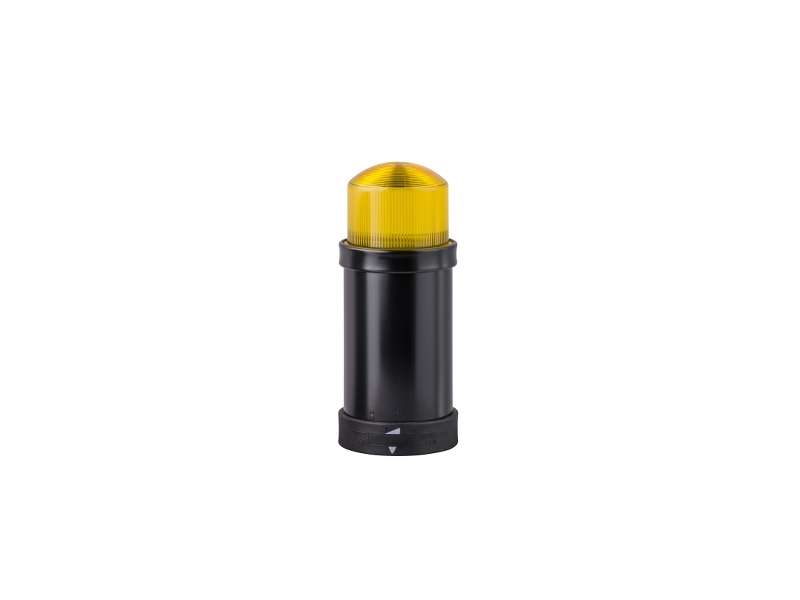

Harmony XVB, Illuminated unit for modular tower lights, plastic, yellow, Ø70, integral "flash" discharge tube, 10 joule, 24 V AC/DC...

Brand: Schneider Electric
Product Code: XVBC8B8
Availability: Check availability

VAT-exclusive price: 10.897,00

VAT-inclusive price: 13.076,40

Qnt:

Description
Specification

Harmony XVB, Illuminated unit for modular tower lights, plastic, yellow, Ø70, integral "flash" discharge tube, 10 joule, 24 V AC/DC

Main
range of product	Harmony XVB Universal
product or component type	Indicator bank
beacon or indicator bank unit type	Illuminated unit
signalling type	Flashing
mounting diameter	70 mm
component name	XVBC
material	Polycarbonate
light source	Integral flash discharge tube, yellow
bulb type	Flash discharge tube
[Us] rated supply voltage	24 V AC/DC
flash energy	10 J

Complementary
assembly style	Customer assembly, up to 5 units
connections - terminals	Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage	250 V conforming to IEC 60947-1
nominal voltage limit	0.85...1.1 Un conforming to IEC 60947-5-1
current consumption	< 1300 mA AC < 850 mA DC
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
flashing frequency	1 Hz
CAD overall width	70 mm
CAD overall height	157 mm
CAD overall depth	70 mm
net weight	0.305 kg

Environment
product certifications	CCC EAC CSA C22-2 No 14 UL 508
standards	EN/IEC 60947-5-1
protective treatment	TC
ambient air temperature for storage	-40…70 °C
electrical shock protection class	Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140
IP degree of protection	IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529
NEMA degree of protection	Type 4X conforming to UL (indoor)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	316.0 g
Package 1 Height	18.7 cm
Package 1 width	8.0 cm
Package 1 Length	8.0 cm
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Weight	6.166 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
