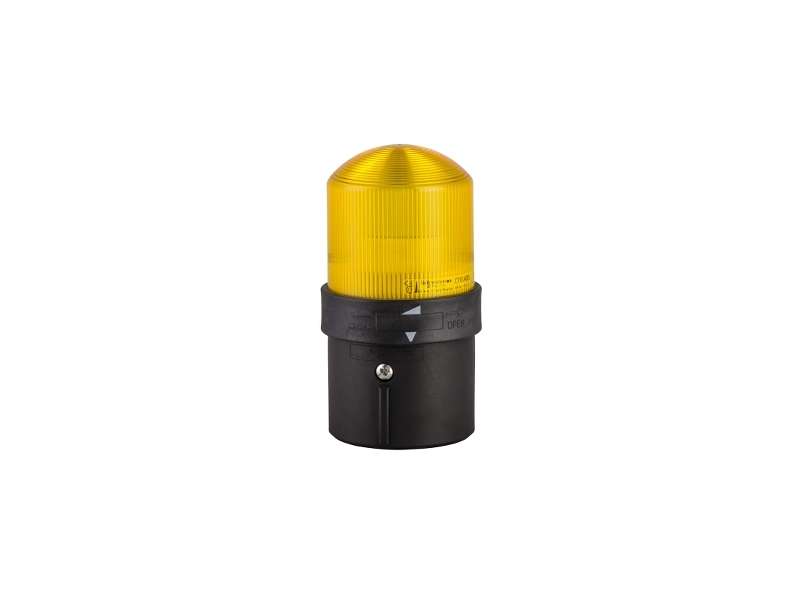

Schneider Electric žuti svetlosni blok 250V 10W + opcije;XVBL38

Complete beacon, Harmony XVB Universal, indicating 250 V 10 W +options...

Brand: Schneider Electric
Product Code: XVBL38
Availability: Check availability

VAT-exclusive price: 10.032,00

VAT-inclusive price: 12.038,40

Qnt:

Description
Specification

Complete beacon, Harmony XVB Universal, indicating 250 V 10 W +options

Main
range of product	Harmony XVB Universal
product or component type	Complete beacon
beacon or indicator bank unit type	Base unit direct or tube fixing Illuminated unit
signalling type	Steady
mounting diameter	70 mm
component name	XVBL
material	Glass reinforced polyamide: base unit Polycarbonate: illuminated unit
light source	Bulb not included, yellow
bulb type	Incandescent with BA 15d base Protected LED
[Us] rated supply voltage	<= 250 V
maximum power dissipation in W	7 W

Complementary
connections - terminals	Screw clamp terminals, <= 1 x 1.5 mm² with cable end
[Ui] rated insulation voltage	250 V conforming to IEC 60947-1
nominal voltage limit	0.85...1.1 Un conforming to IEC 60947-5-1
[Uimp] rated impulse withstand voltage	4 kV conforming to IEC 60947-1
CAD overall width	70 mm
CAD overall height	139 mm
CAD overall depth	70 mm
terminals description ISO n°1	(GND)GROUND (COM-1)PW
net weight	0.26 kg

Environment
pollution degree	2
product certifications	CCC EAC CSA C22-2 No 14 UL 508
standards	EN/IEC 60947-5-1
protective treatment	TC
ambient air temperature for operation	-25…50 °C: LED -25…70 °C: incandescent
ambient air temperature for storage	-40…70 °C
electrical shock protection class	Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140
IP degree of protection	IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529
NEMA degree of protection	Type 4X conforming to UL (indoor)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	261.0 g
Package 1 Height	8.0 cm
Package 1 width	8.0 cm
Package 1 Length	14.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	18
Package 2 Weight	5.171 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
