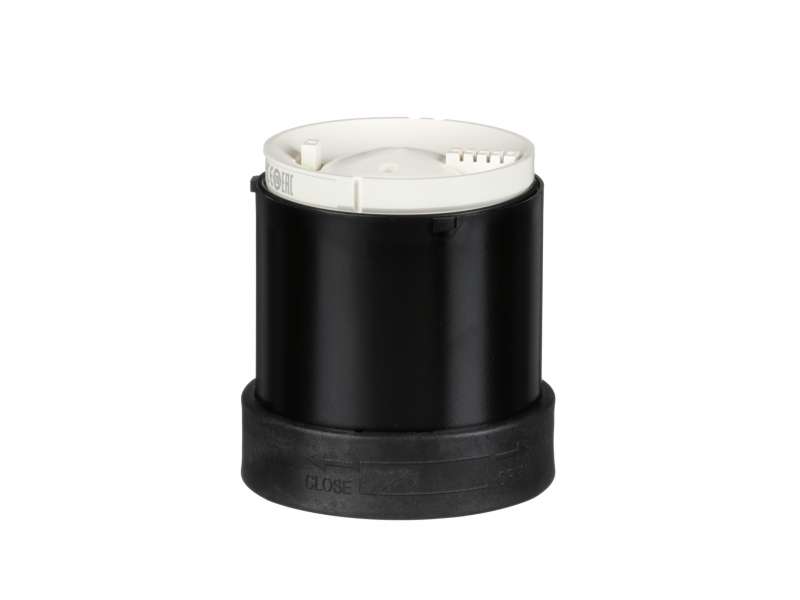

Schneider Electric Zujalica 24VAC + opcije;XVBC9B
Harmony XVB, Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70... 90 dB, 12...48 V AC/DC...
VAT-exclusive price: 15.886,00 |
VAT-inclusive price: 19.063,20 |
Harmony XVB, Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70... 90 dB, 12...48 V AC/DC
| range of product |
Harmony XVB Universal
|
|
|---|---|---|
| product or component type |
Indicator bank
|
|
| beacon or indicator bank unit type |
Audible unit
|
|
| mounting diameter |
70 mm
|
|
| component name |
XVBC
|
|
| noise level |
70…90 dB at 1 m
|
|
| [Us] rated supply voltage |
12...48 V AC/DC
|
| signalling type |
Continuous or intermittent buzzer
|
|
|---|---|---|
| assembly style |
Customer assembly, up to 5 units
|
|
| connections - terminals |
Screw clamp terminals, <= 1 x 1.5 mm² with cable end
|
|
| [Ui] rated insulation voltage |
250 V conforming to IEC 60947-1
|
|
| nominal voltage limit |
0.85...1.1 Un conforming to IEC 60947-5-1
|
|
| current consumption |
< 15 mA
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60947-1 4 kV
|
|
| fundamental frequency |
2.8 kHz
|
|
| CAD overall width |
70 mm
|
|
| CAD overall height |
63 mm
|
|
| CAD overall depth |
70 mm
|
|
| net weight |
0.17 kg
|
| product certifications |
CSA C22-2 No 14
GOST UL 508 CCC |
|
|---|---|---|
| standards |
EN/IEC 60947-5-1
|
|
| protective treatment |
TC
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…50 °C
|
|
| electrical shock protection class |
Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140 |
|
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X conforming to UL 508 (indoor)
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
160 g
|
|
| Package 1 Height |
8 cm
|
|
| Package 1 width |
9.5 cm
|
|
| Package 1 Length |
8 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
36
|
|
| Package 2 Weight |
6.715 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P06
|
|
| Number of Units in Package 3 |
288
|
|
| Package 3 Weight |
60.284 kg
|
|
| Package 3 Height |
77 cm
|
|
| Package 3 width |
60 cm
|
-
Harmony XVB XVBC9B
