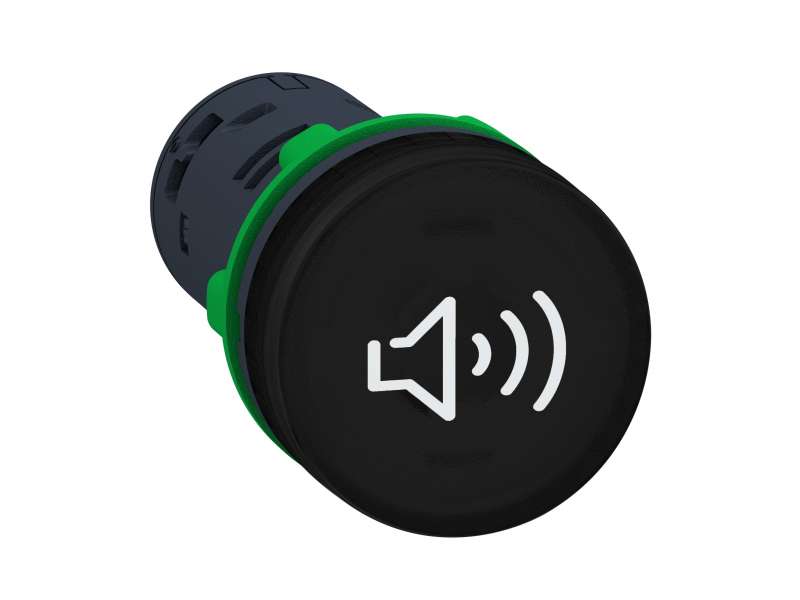

Schneider Electric Zujalica 120 V AC 85 dB;XB5KSG
Complete buzzer, plastic, black, Ø22, continuous or intermittent tone, 110...120 V AC/DC...
VAT-exclusive price: 7.843,00 |
VAT-inclusive price: 9.411,60 |
Complete buzzer, plastic, black, Ø22, continuous or intermittent tone, 110...120 V AC/DC
| range of product |
Harmony XB5
|
|
|---|---|---|
| bezel material |
Dark grey plastic
|
|
| product or component type |
Annunciator
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| cap/operator or lens colour |
Black
|
| [Us] rated supply voltage |
120 V +/- 10 %
|
|
|---|---|---|
| supply circuit type |
AC/DC
|
|
| supply frequency |
50/60 Hz
|
|
| current consumption |
<= 20 mA
|
|
| signalling type |
Continuous or intermittent tone
|
|
| resistance to high pressure washer |
9000000 Pa at 80 °C, distance : 0.1 m
|
|
| height |
29 mm
|
|
| width |
29 mm
|
|
| depth |
55 mm
|
|
| net weight |
0.024 kg
|
| noise level |
90 dB at 6.8 kHz distance 0.1 m (+/- 10 %)
|
|
|---|---|---|
| protective treatment |
TH
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class II conforming to IEC 60536
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP20 (rear face) conforming to IEC 60529
IP66 conforming to IEC 60529 IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to EN 50102
IK03 conforming to IEC 50102 |
|
| standards |
EN 60947-1
IEC 60947-5-1 UL 508 EN 60947-5-4 IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-5-4 EN 60947-5-1 JIS C8201-1 |
|
| product certifications |
UL listed
CSA BV |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
28 g
|
|
| Package 1 Height |
3.2 cm
|
|
| Package 1 width |
3.4 cm
|
|
| Package 1 Length |
5.8 cm
|
|
| Unit Type of Package 2 |
S01
|
|
| Number of Units in Package 2 |
88
|
|
| Package 2 Weight |
3.217 kg
|
|
| Package 2 Height |
15 cm
|
|
| Package 2 width |
15 cm
|
|
| Package 2 Length |
40 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
-
Harmony XB5 XB5KSG
