Schneider Electric Zidni rek VDM 5U 2 tela D480

Wall rack VDM 5U 2 bodies D480...

Brand: Schneider Electric
Product Code: NSYVD2M5U5
Availability: Check availability

VAT-exclusive price: 141.815,00

VAT-inclusive price: 170.178,00

Qnt:

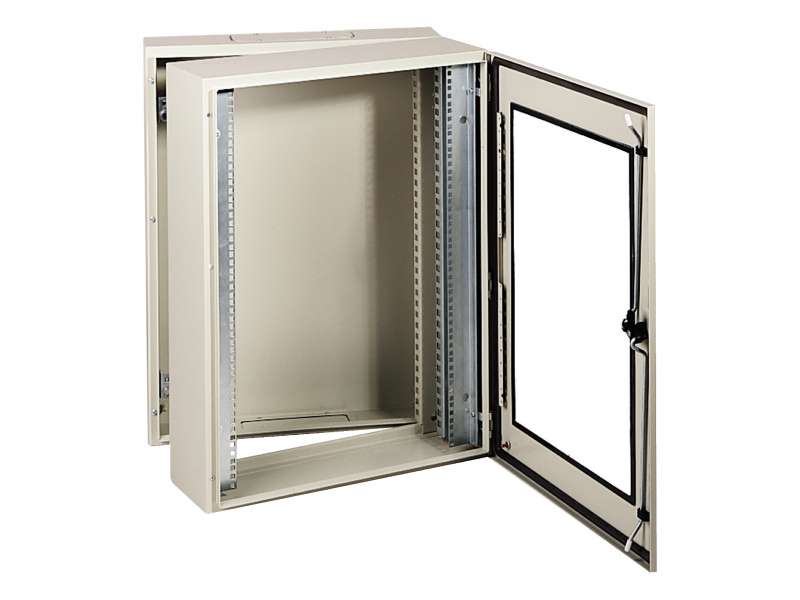

Wall rack VDM 5U 2 bodies D480

Main
range	Spacial
product name	Spacial VDM
Application	Electronic application
Product or component type	Compact enclosure
body type	2-body
rack type	Fixed
enclosure nominal height	300 mm
enclosure nominal width	600 mm
enclosure nominal depth	480 mm
installation accessory type	Wall-mounting
product destination	Electronics and networks
device composition	1 rear part: inside the enclosure 2 cable gland plate: top and bottom of rear 1 19" fixed rack: 65 mm back from the front panel 1 body 1 door with lock

Complementary
door type	Glazed
number of doors	Front face: 1 door(s)
door opening side	Reversible (120 °)
lock type	3 mm double-bar lock
type of gland plate	Standard
number of units 19"	5
accessibility for operation	Front body and front rear
removable parts	Door by hinges Body by fixing element Rack
material	Enclosure: steel 19" fixed rack: galvanised steel
surface finish	Enclosure: epoxy-polyester powder
colour	Enclosure: grey (RAL 7035)
standards	IEC 62208
Net weight	20.8 kg

Environment
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	20.8 kg
Package 1 Height	32 cm
Package 1 width	61 cm
Package 1 Length	51.5 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
