Main

range of product	Telemecanique Cabling components
accessory / separate part category	Cabling accessories
Accessory / separate part type	Connector

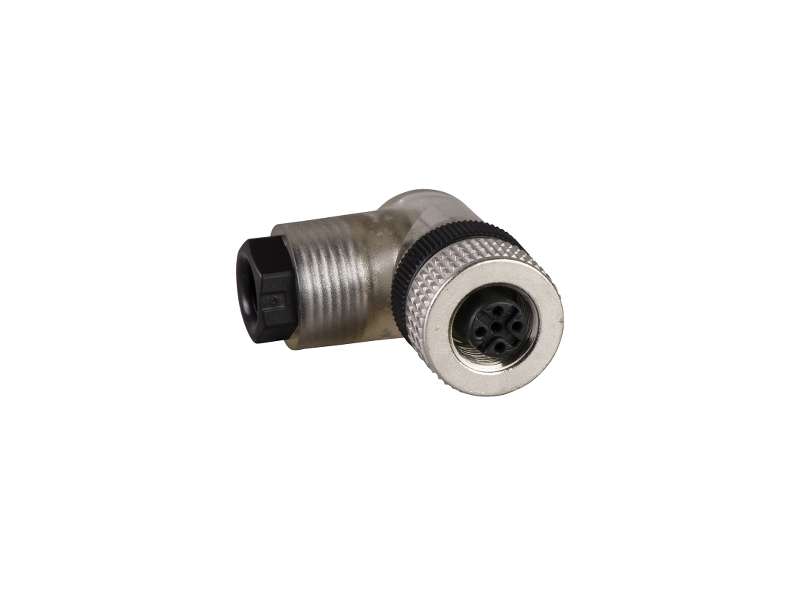

electrical connection	Elbowed female connector M12, 4 pins
collar material	Plastic
status LED	2 PNP LEDs
cable connection	Screw terminal / wire size <0.75 mm² / clamping capacity 3…6 mm

Complementary

cable gland type	Pg 7
cable connector fixing	Screw-on
[Ue] rated operational voltage	10...30 V DC
[In] rated current	3 A
enclosure material	Plastic
minimum insulating resistance	1000 GΩ
contact resistance	8000 µOhm
net weight	0.02 kg

Environment

IP degree of protection	IP67
ambient air temperature for operation	-40…85 °C

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	28 g
Package 1 Height	3.2 cm
Package 1 width	10.1 cm
Package 1 Length	12.2 cm
Unit Type of Package 2	S02
Number of Units in Package 2	50
Package 2 Weight	1.812 kg
Package 2 Height	15 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Contractual warranty

Warranty	18 months
