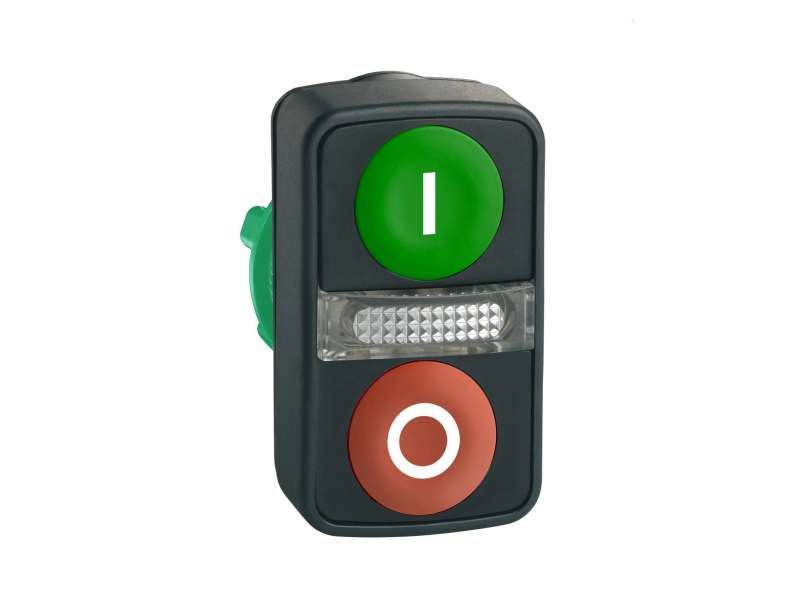

Schneider Electric Zeleni udubljeni/crveni udubljeni svetleći dvostruki taster Ø22 sa oznakama;ZB5AW7A3741
Illuminated double-headed push button head,plastic, Ø22, 1 green flush marked I + 1 pilot light + 1 red flush marked O...
VAT-exclusive price: 1.412,00 |
VAT-inclusive price: 1.694,40 |
Illuminated double-headed push button head,plastic, Ø22, 1 green flush marked I + 1 pilot light + 1 red flush marked O
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for illuminated double-headed push-button
|
|
| product compatibility |
Integral LED
|
|
| device short name |
ZB5
|
|
| bezel material |
Dark grey plastic
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Rectangular
|
|
| type of operator |
spring return
|
|
| operator profile |
2 flush push-buttons - 1 central pilot light
|
|
| operators description |
Green ''I'' - red ''O''
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
50 mm
|
|
| CAD overall depth |
30 mm
|
|
| net weight |
0.023 kg
|
|
| operator profile |
Green flush, I (white)
Red flush, O (white) |
|
| mechanical durability |
1000000 cycles
|
|
| station name |
XALD 1 cut-out
|
|
| device presentation |
Basic sub-assemblies
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| IK degree of protection |
IK05 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1 |
|
| product certifications |
CSA
DNV UL listed BV LROS (Lloyds register of shipping) GL RINA |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
25.6 g
|
|
| Package 1 Height |
3.5 cm
|
|
| Package 1 width |
5.3 cm
|
|
| Package 1 Length |
5.8 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
-
Harmony XB5 ZB5AW7A3741
