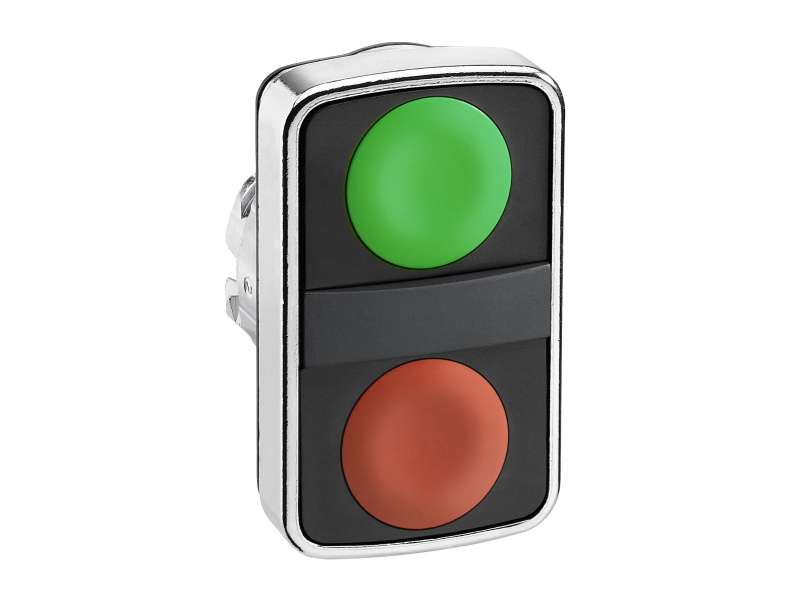

Schneider Electric Zeleni udubljeni/crveni udubljeni dvostruki taster Ø22 neobeleženo;ZB4BA7340
Double-headed push button head, metal, Ø22, 1 green flush unmarked + 1 red flush unmarked...
VAT-exclusive price: 1.223,00 |
VAT-inclusive price: 1.467,60 |
Double-headed push button head, metal, Ø22, 1 green flush unmarked + 1 red flush unmarked
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for double-headed push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Rectangular
|
|
| type of operator |
spring return
|
|
| operator profile |
2 flush push-buttons
|
|
| operators description |
Green unmarked - red unmarked
|
| net weight |
0.056 kg
|
|
|---|---|---|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| colour of marking |
White marking when green, red or black caps
Black marking when white caps |
|
| operator profile |
Green flush, unmarked
Red flush, unmarked |
|
| mechanical durability |
1000000 cycles
|
|
| electrical composition code |
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-1
EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 JIS C8201-1 |
|
| product certifications |
UL listed
BV RINA GL CSA DNV LROS (Lloyds register of shipping) |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Package 1 Weight |
0.058 kg
|
|
|---|---|---|
| Package 1 Height |
0.550 dm
|
|
| Package 1 width |
0.330 dm
|
|
| Package 1 Length |
0.530 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure |
|
-
Harmony XB4 ZB4BA7340
