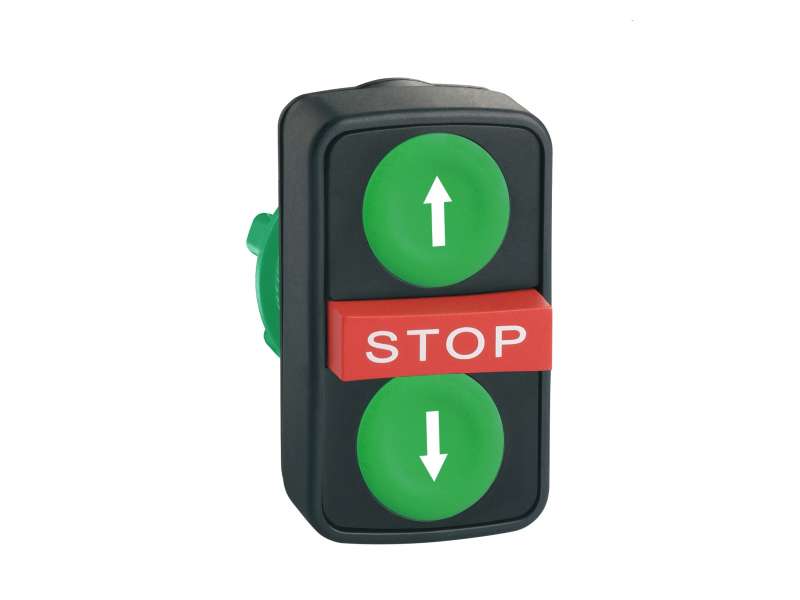

Schneider Electric Zeleni udubljeni/crveni izbočeni/zeleni udub. taster sa 3 glave Ø22 sa oznakama;ZB5AA73134
Green flush/red projecting/green flush triple-headed pushbutton Ø22 with marking...
VAT-exclusive price: 1.489,00 |
VAT-inclusive price: 1.786,80 |
Green flush/red projecting/green flush triple-headed pushbutton Ø22 with marking
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for triple-headed push-button
|
|
| device short name |
XB5
|
|
| bezel material |
Dark grey plastic
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Rectangular
|
|
| type of operator |
spring return
|
|
| operator profile |
2 flush - 1 central projecting STOP push-buttons
|
|
| operators description |
Green ''up arrow'' - green ''down arrow'' - red ''STOP''
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
50 mm
|
|
| CAD overall depth |
35 mm
|
|
| net weight |
0.023 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| colour of marking |
Black marking when white caps
White marking when green, red or black caps |
|
| operator profile |
Red projecting, STOP (white)
Green flush, down arrow (white) Green flush, up arrow (white) |
|
| mechanical durability |
1000000 cycles
|
|
| station name |
XALD 1 cut-out
|
|
| electrical composition code |
C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting C11 for <3 contacts using single blocks in front mounting SF1 for <3 contacts using single blocks in front mounting SR1 for <3 contacts using single blocks in rear mounting |
|
| device presentation |
Basic element
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-25…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to IEC 50102
|
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-5-1 UL 508 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
GL
BV LROS (Lloyds register of shipping) CSA UL listed RINA DNV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
24 g
|
|
| Package 1 Height |
4.5 cm
|
|
| Package 1 width |
3.3 cm
|
|
| Package 1 Length |
5.3 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
-
Harmony XB5 ZB5AA73134
