Schneider Electric Zeleni udubljeni/crveni izbočeni dvostruki taster Ø22 sa oznakama;ZB4BL73417
Green flush/red projecting double-headed pushbutton Ø22 with marking...
VAT-exclusive price: 2.148,00 |
VAT-inclusive price: 2.577,60 |

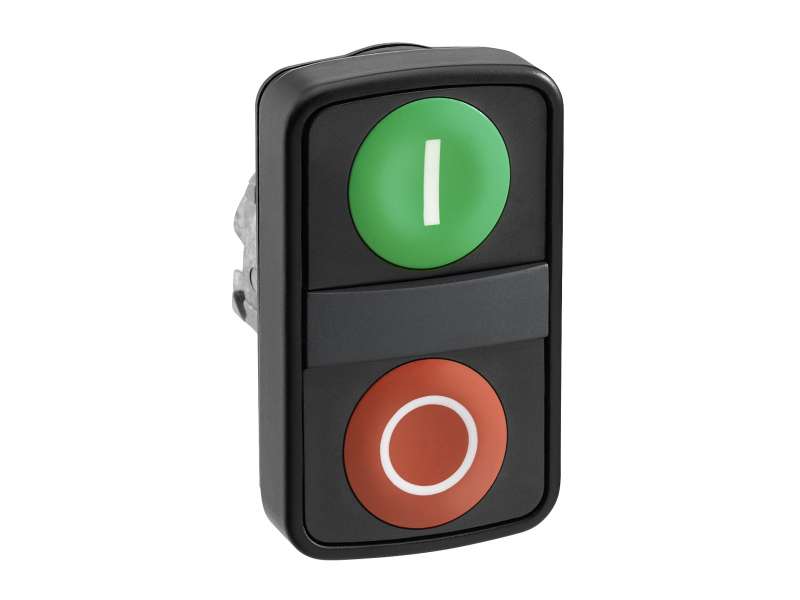

Green flush/red projecting double-headed pushbutton Ø22 with marking
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for double-headed push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Black metal
|
|
| mounting diameter |
22 mm
|
|
| head type |
Standard
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Rectangular
|
|
| type of operator |
spring return
|
|
| operator profile |
1 flush - 1 projecting push-buttons
|
|
| operators description |
Green ''I'' - red ''O''
|
| net weight |
0.056 kg
|
|
|---|---|---|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| colour of marking |
Black marking when white caps
White marking when green, red or black caps |
|
| operator profile |
Green flush, I (white)
Red projecting, O (white) |
|
| mechanical durability |
1000000 cycles
|
|
| electrical composition code |
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting C14 for <2 contacts using single blocks in front mounting |
|
| device presentation |
Basic element
|
| ambient air temperature for storage |
-40…70 °C
|
|
|---|---|---|
| ambient air temperature for operation |
-40…70 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP69 conforming to IEC 60529
IP66 conforming to IEC 60529 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
CSA C22.2 No 14
JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C8201-1 |
|
| product certifications |
RINA
BV CSA LROS (Lloyds register of shipping) DNV UL listed GL |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
56 g
|
|
| Package 1 Height |
5.2 cm
|
|
| Package 1 width |
4.8 cm
|
|
| Package 1 Length |
2.8 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
283 g
|
|
| Package 2 Height |
5.6 cm
|
|
| Package 2 width |
26.5 cm
|
|
| Package 2 Length |
3.4 cm
|
|
| Unit Type of Package 3 |
S03
|
|
| Number of Units in Package 3 |
200
|
|
| Package 3 Weight |
12.055 kg
|
-
Harmony XB4 ZB4BL73417
