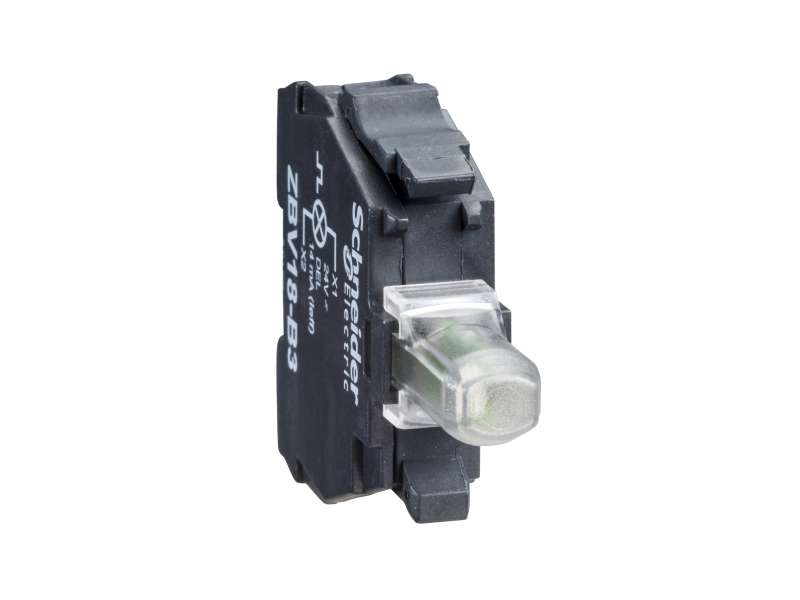

Schneider Electric Zeleni svetlosni blok za glavu Ø22 integrisan LED 24V vijčani priključak;ZBVB3
Light block for head Ø22, green, integral LED, 24 V AC/DC...
VAT-exclusive price: 1.205,00 |
VAT-inclusive price: 1.446,00 |
Light block for head Ø22, green, integral LED, 24 V AC/DC
| range of product |
Harmony XB4
Harmony XB5 |
|
|---|---|---|
| product or component type |
Light block
|
|
| device short name |
ZBV
|
|
| sale per indivisible quantity |
5
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
|
| signalling type |
Steady
|
|
| light source |
Protected LED
|
|
| bulb base |
Integral LED
|
|
| light block supply |
Direct
|
|
| light source colour |
Green
|
|
| [Us] rated supply voltage |
24 V AC/DC at 50/60 Hz
|
| net weight |
0.017 kg
|
|
|---|---|---|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| supply voltage limits |
19.2…30 V DC
21.6…26.4 V AC |
|
| current consumption |
18 mA
|
|
| service life |
100000 h at rated voltage and 25 °C
|
|
| surge withstand |
1 kV conforming to IEC 61000-4-5
|
|
| mounting of block |
Front mounting
|
|
| electrical composition code |
M1
M2 M3 M4 M5 M6 M10 MF1 P1 P2 PF1 |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| standards |
UL 508
EN/IEC 60947-5-5 EN/IEC 60947-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
CSA
UL listed |
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4
|
|
| resistance to electromagnetic fields |
10 V/m conforming to IEC 61000-4-3
|
|
| resistance to electrostatic discharge |
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
|
| electromagnetic emission |
Class B conforming to IEC 55011
|
|
| [Us] rated supply voltage |
24 V
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
8.8 g
|
|
| Package 1 Height |
1 cm
|
|
| Package 1 width |
3.3 cm
|
|
| Package 1 Length |
4 cm
|
|
| Unit Type of Package 2 |
BB1
|
|
| Number of Units in Package 2 |
5
|
|
| Package 2 Weight |
51.6 g
|
|
| Package 2 Height |
4.5 cm
|
|
| Package 2 width |
5.5 cm
|
-
Harmony XB4 ZBVB3
