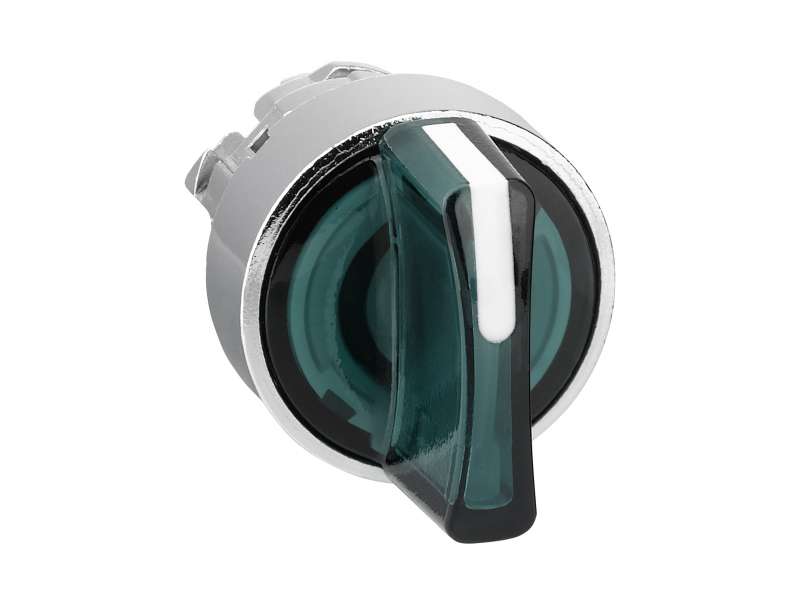

Schneider Electric Zelena svetleća glava izbornog prekidača Ø22 3-pozicije sa povratkom;ZB4BK1733
Illuminated selector switch head, metal, green, Ø22, integral LED, 3 positions, spring return left to center...
VAT-exclusive price: 2.035,00 |
VAT-inclusive price: 2.442,00 |
Illuminated selector switch head, metal, green, Ø22, integral LED, 3 positions, spring return left to center
-
Main range of product Harmony XB4product or component type Head for illuminated selector switchproduct compatibility Integral LEDdevice short name ZB4bezel material Chromium plated metalhead type Standardmounting diameter 22 mmsale per indivisible quantity 1shape of signaling unit head Roundtype of operator Left to centre spring returnoperator profile Green standard handleoperator position information 3 positions +/- 45°Complementary CAD overall width 29 mmCAD overall height 29 mmCAD overall depth 43 mmnet weight 0.036 kgresistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 mmechanical durability 500000 cycleselectrical composition code M3 for <4 contacts using single blocks in front mounting with integral LED
M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
M10 for <2 contacts using single blocks in front mounting with integral LED
M4 for <4 contacts using single and double blocks in front mounting with integral LEDdevice presentation Basic elementEnvironment protective treatment THambient air temperature for storage -40…70 °Cambient air temperature for operation -40…70 °Covervoltage category Class I conforming to IEC 60536IP degree of protection IP66 conforming to IEC 60529
IP67
IP69
IP69KNEMA degree of protection NEMA 13
NEMA 4XIK degree of protection IK06 conforming to IEC 50102standards EN/IEC 60947-5-1
JIS C8201-5-1
CSA C22.2 No 14
EN/IEC 60947-5-5
EN/IEC 60947-5-4
EN/IEC 60947-1
UL 508
JIS C8201-1product certifications DNV
GL
UL listed
LROS (Lloyds register of shipping)
CSA
BV
RINAvibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27Packing Units Unit Type of Package 1 PCENumber of Units in Package 1 1Package 1 Weight 41 gPackage 1 Height 3.3 cmPackage 1 width 4.8 cmPackage 1 Length 5.2 cmUnit Type of Package 2 S03Number of Units in Package 2 250Package 2 Weight 11.007 kgPackage 2 Height 30 cmPackage 2 width
-
Harmony XB4 ZB4BK1733
