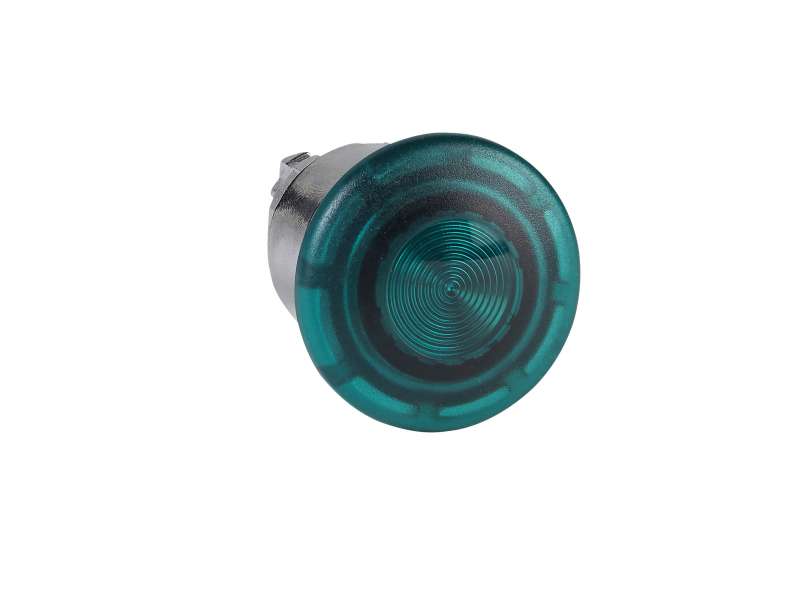

Schneider Electric Zelena Ø40 svetleća pečurkasta glava tastera Ø22 sa povratkom za integrisan LED;ZB4BW433
Illuminated mushroom push button head Ø40, metal, green, Ø22, spring return, integral LED...
VAT-exclusive price: 2.228,00 |
VAT-inclusive price: 2.673,60 |
Illuminated mushroom push button head Ø40, metal, green, Ø22, spring return, integral LED
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for illuminated push-button
|
|
| device short name |
ZB4
|
|
| product compatibility |
Integral LED
|
|
| bezel material |
Chromium plated metal
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
spring return
|
|
| operator profile |
Green mushroom Ø 40 mm, unmarked
|
| CAD overall width |
40 mm
|
|
|---|---|---|
| CAD overall height |
40 mm
|
|
| CAD overall depth |
53 mm
|
|
| net weight |
0.051 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
10000000 cycles
|
|
| electrical composition code |
M1 for <6 contacts using single blocks in front mounting with integral LED
M2 for <6 contacts using single and double blocks in front mounting with integral LED M6 for <2 contacts using single blocks in front mounting with integral LED and transformer M10 for <2 contacts using single blocks in front mounting with integral LED |
|
| device presentation |
Basic sub-assemblies
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK05 conforming to EN 50102
|
|
| standards |
EN/IEC 60947-1
JIS C8201-5-1 EN/IEC 60947-5-5 EN/IEC 60947-5-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
DNV
CSA UL listed BV RINA GL LROS (Lloyds register of shipping) |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
62 g
|
|
| Package 1 Height |
5.3 cm
|
|
| Package 1 width |
4.2 cm
|
|
| Package 1 Length |
8.5 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
80
|
|
| Package 2 Weight |
5.673 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
-
Harmony XB4 ZB4BW433
