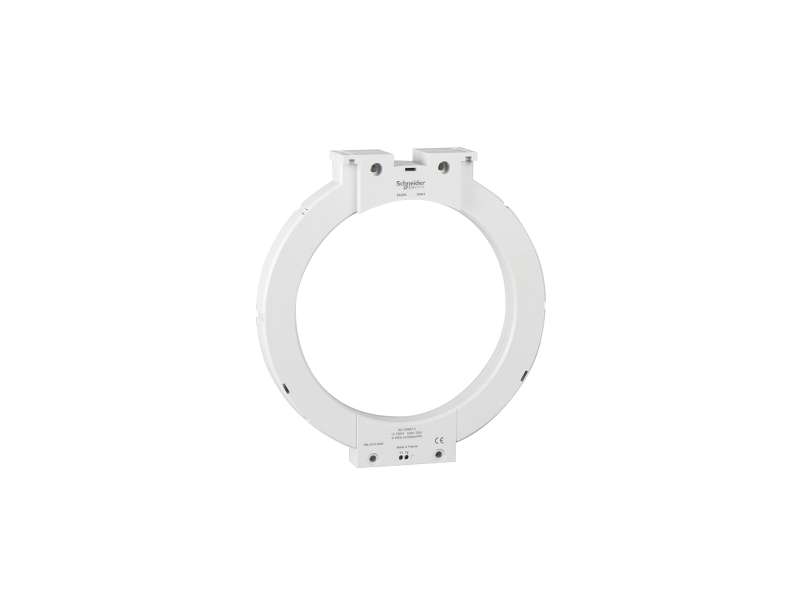

Schneider Electric Zatvoreni torus za diferencijalnu zaštitu GA - Ø 300 mm;50442
Closed toroid A type, VigiPacT, Vigilohm, GA300, inner diameter 300mm, rated current 630A...
VAT-exclusive price: 119.985,00 |
VAT-inclusive price: 143.982,00 |
Closed toroid A type, VigiPacT, Vigilohm, GA300, inner diameter 300mm, rated current 630A
| range | VigiPacT |
|---|---|
| device short name | GA300 |
| product or component type | Earth leakage current sensor |
| device application | Equipment monitoring and control |
| range compatibility |
RH10M residual current protection relay RH10P residual current protection relay RH21M residual current protection relay RH21P residual current protection relay RH68M residual current protection relay RH86M residual current protection relay RH86P residual current protection relay RH99M residual current protection relay RH99P residual current protection relay RH197M residual current protection relay RH197P residual current protection relay RHU residual current protection relay RHUs residual current protection relay RMH residual current protection relay |
| current sensor type | A type closed toroid |
| [Ie] rated operational current | 630 A |
| transformer ratio | 1/1000 |
|---|---|
| network type | AC/DC |
| network frequency | 45...440 Hz |
| [Icw] rated short-time withstand current | 85 kA for 0.5 s |
| residual short-circuit withstand current | 85 kA / 0.5 s conforming to IEC 60947-2 |
| [Ui] rated insulation voltage | 1000 V |
| overvoltage category | IV |
| [Uimp] rated impulse withstand voltage | 12 kV |
| mounting mode | Fixed (cables) |
| connections - terminals | Connection by clip 6.35 mm² |
| diameter | 291 mm inner: |
| cable outer diameter | 150 mm for 2 cables : 240 mm² (maximum) |
| net weight | 2.23 kg |
| height | Outside: 360 mm |
| width | Outside: 390 mm |
| height | 360 mm |
| depth | Outside: 46 mm |
| width | 390 mm |
| depth | 46 mm |
| IP degree of protection |
Connectors: IP20 IP30 |
|---|---|
| environmental characteristic |
Exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 Salt mist: Kb/2 conforming to IEC 60068-2-52 Exposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56 |
| pollution degree | Level 3 conforming to IEC 60664-1 |
| ambient air temperature for operation | -35…70 °C |
| ambient air temperature for storage | -55…85 °C |
| standards | IEC 60947-2 |
| product certifications | CE |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.152 kg |
| Package 1 Height | 5.4 cm |
| Package 1 width | 36.8 cm |
| Package 1 Length | 40.2 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Weight | 11.526 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 40 cm |
| Package 2 Length | 60 cm |
| Warranty | 18 months |
|---|
