Schneider Electric Zaštitna pregrada V1500mm za Linergy BS 630A višeizlazni sabirnički blok; LVS04197
Insulating plate, Linergy BS, H 1500mm W 250mm, multi stage busbar protection, for ducts PrismaSeT G W300 / PrismaSeT P W400...
VAT-exclusive price: 10.689,00 |
VAT-inclusive price: 12.826,80 |

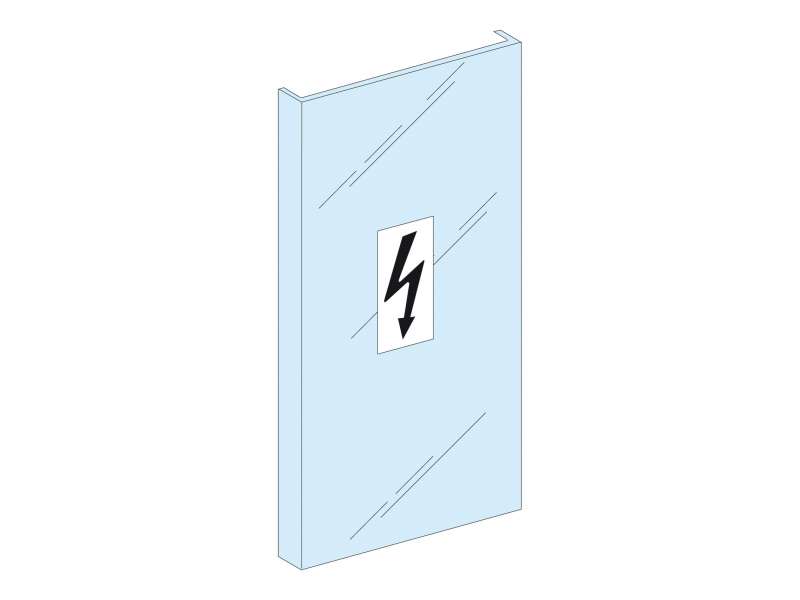

Insulating plate, Linergy BS, H 1500mm W 250mm, multi stage busbar protection, for ducts PrismaSeT G W300 / PrismaSeT P W400
| Range | Linergy |
|---|---|
| Range of product | Linergy BS |
| Product or component type | Insulating plate |
| Accessory / separate part category | Insulation accessory |
| Range compatibility |
Linergy (Linergy BS) busbar PrismaSeT (PrismaSeT G) duct PrismaSeT (PrismaSeT P) duct |
| IP degree of protection | IPxx B |
| Barrier position | Front |
| installation description |
Wall-mounted duct - width 300 mm Floor-standing duct - width 300 mm Duct - width 400 mm |
|---|---|
| Number of vertical modules [50 mm] | 30 |
| Installed device | Multi-stage busbar |
| [Ie] rated operational current | 630 A |
| Quantity per set | Set of 1 |
| Material | Plastic |
| Height | 1500 mm |
| Width | 250 mm |
| Product weight | 0.74 kg |
| Colour | Transparent |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.600 cm |
| Package 1 Width | 23.500 cm |
| Package 1 Length | 150.200 cm |
| Package 1 Weight | 747.000 g |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 240 |
| Package 2 Height | 74.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 202.000 cm |
| Package 2 Weight | 204.500 kg |
-
PrismaSeT G LVS04197
