Schneider Electric Zaštitna jedinica za ComPacT NSX250, TMG, termomagnetna zaštita, struja 200 A, DC, 3P 3d;C253MG200D

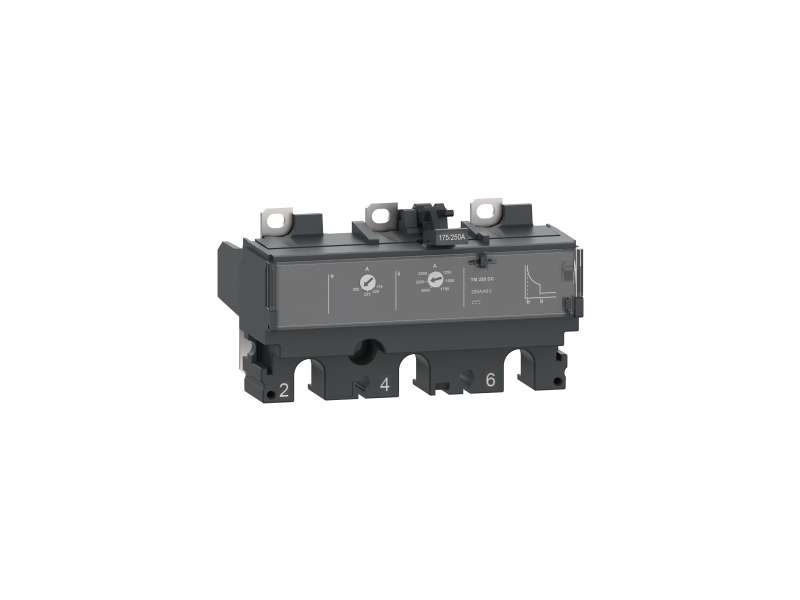

Trip unit TM200G DC, ComPacT NSX250 DC, 3 poles, thermal magnetic protections, generator protection, 200A rating...
VAT-exclusive price: 11.997,00 |
VAT-inclusive price: 14.396,40 |
Trip unit TM200G DC, ComPacT NSX250 DC, 3 poles, thermal magnetic protections, generator protection, 200A rating
| range | ComPacT new generation |
|---|---|
| range of product | ComPacT NSX100...250 DC new generation |
| product or component type | Trip unit |
| trip unit name | TM-G |
| trip unit technology | Thermal-magnetic |
| range compatibility |
ComPacT new generation NSX100 DC ComPacT new generation NSX160 DC ComPacT new generation NSX250 DC |
| device application | Generator |
| poles description | 3P |
| protected poles description | 3D |
| trip unit protection functions | LI |
| protection type |
L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 200 A at 40 °C |
| [Ue] rated operational voltage | 750 V DC |
| network type | DC |
| Circuit breaker mounting mode | Fixed |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 530 A |
| earth-leakage protection | Without |
| standards | EN/IEC 60947-2 |
|---|---|
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 360.0 g |
| Package 1 Height | 9.0 cm |
| Package 1 width | 6.0 cm |
| Package 1 Length | 10.5 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 32 |
| Package 2 Weight | 11200.0 g |
| Package 2 Height | 295.0 mm |
| Package 2 width | 293.0 mm |
| Package 2 Length | 405.0 mm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 384 |
| Package 3 Weight | 134400.0 g |
| Package 3 Height | 1500.0 mm |
| Package 3 width | 800.0 mm |
| Package 3 Length | 1200.0 mm |
