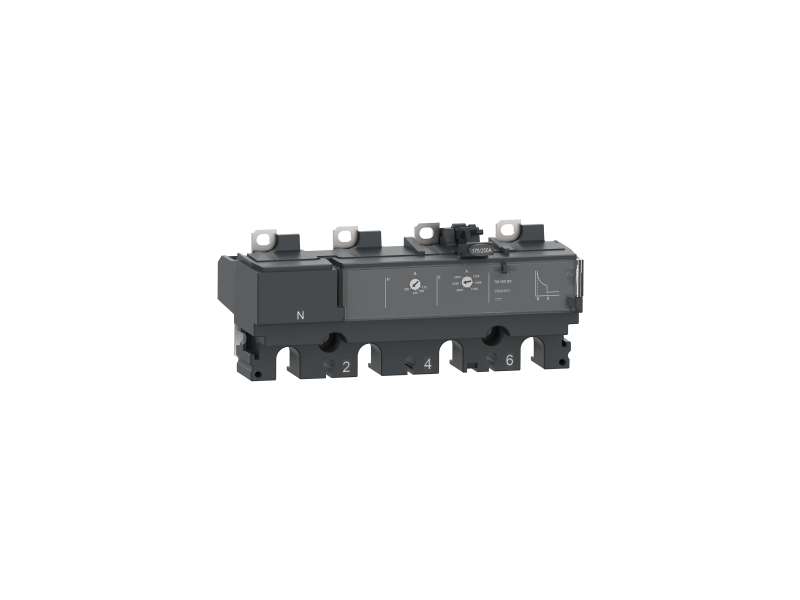

Schneider Electric Zaštitna jedinica TM80DC, ComPacT NSX 100 DC, termomagnetna zaštita, 80 A struja, 4P 4d;C104TM080D
Trip unit TM80DC, ComPacT NSX100 DC, 4 poles, thermal magnetic protections, 80A rating...
VAT-exclusive price: 13.746,00 |
VAT-inclusive price: 16.495,20 |
Trip unit TM80DC, ComPacT NSX100 DC, 4 poles, thermal magnetic protections, 80A rating
| range | ComPacT new generation |
|---|---|
| range of product | ComPacT NSX100...250 DC new generation |
| product or component type | Trip unit |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| range compatibility | ComPacT new generation NSX100 DC |
| device application | Distribution |
| poles description | 4P |
| protected poles description | 4D |
| trip unit protection functions | LI |
| protection type |
L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 80 A at 40 °C |
| [Ue] rated operational voltage | 750 V DC |
| network type | DC |
| Circuit breaker mounting mode | Fixed |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 800 A |
| earth-leakage protection | Without |
| standards | EN/IEC 60947-2 |
|---|---|
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 543.0 g |
| Package 1 Height | 6.5 cm |
| Package 1 width | 9.5 cm |
| Package 1 Length | 15.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 23 |
| Package 2 Weight | 12.872 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 320 mm |
