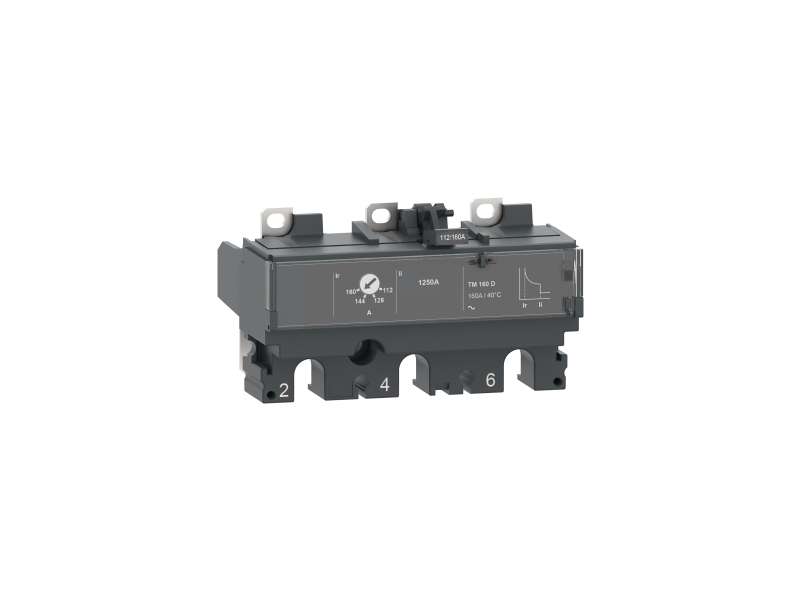

Schneider Electric Zaštitna jedinica TM50D za ComPacT NSX 100/160 prekidače, termomagnetna zaštita, struja 50 A, 3P 3d;C103TM050
Trip unit TM50D, ComPacT NSX100/160, 3 poles, thermal magnetic protections, 50A rating...
VAT-exclusive price: 8.900,00 |
VAT-inclusive price: 10.680,00 |
Trip unit TM50D, ComPacT NSX100/160, 3 poles, thermal magnetic protections, 50A rating
| range | ComPacT new generation |
|---|---|
| range of product |
ComPacT NSX100...250 new generation ComPacT NSX100...250 DC new generation |
| product or component type | Trip unit |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| range compatibility |
ComPacT new generation NSX100 ComPacT new generation NSX160 ComPacT new generation NSX100 DC |
| device application | Distribution |
| poles description | 3P |
| protected poles description | 3D |
| trip unit protection functions | LI |
| protection type |
L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 50 A at 40 °C |
| [Ue] rated operational voltage |
690 V AC 50/60 Hz 750 V DC |
| network type |
AC DC |
| network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Fixed |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range |
120…400 s at 1.5 x In 15 s at 6 x Ir |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 500 A |
| earth-leakage protection | Without |
| standards | EN/IEC 60947-2 |
|---|---|
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 412.0 g |
| Package 1 Height | 7.0 cm |
| Package 1 width | 10.0 cm |
| Package 1 Length | 11.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 28 |
| Package 2 Weight | 11.86 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| range | ComPacT new generation |
|---|---|
| range of product |
ComPacT NSX100...250 new generation ComPacT NSX100...250 DC new generation |
| product or component type | Trip unit |
| trip unit name | TM-D |
| trip unit technology | Thermal-magnetic |
| range compatibility |
ComPacT new generation NSX100 ComPacT new generation NSX160 ComPacT new generation NSX100 DC |
| device application | Distribution |
| poles description | 3P |
| protected poles description | 3D |
| trip unit protection functions | LI |
| protection type |
L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 50 A at 40 °C |
| [Ue] rated operational voltage |
690 V AC 50/60 Hz 750 V DC |
| network type |
AC DC |
| network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Fixed |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range |
120…400 s at 1.5 x In 15 s at 6 x Ir |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 500 A |
| earth-leakage protection | Without |
| standards | EN/IEC 60947-2 |
|---|---|
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 412.0 g |
| Package 1 Height | 7.0 cm |
| Package 1 width | 10.0 cm |
| Package 1 Length | 11.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 28 |
| Package 2 Weight | 11.86 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
