Schneider Electric Zaštitna jedinica TM32D za ComPacT NSX 100/160 prekidače, termomagnetna zaštita, struja 32 A, 3P 3d;C103TM032

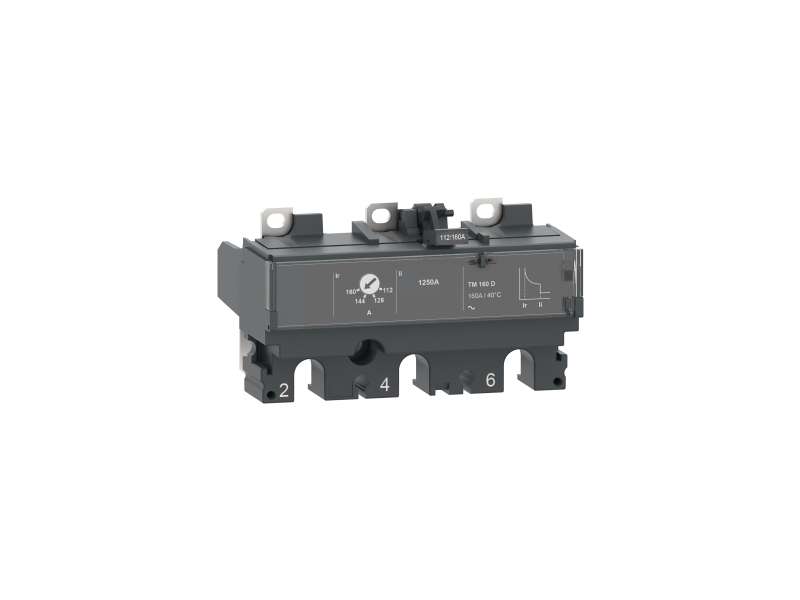

Trip unit TM32D, ComPacT NSX100/160, 3 poles, thermal magnetic protections, 32A rating...

Brand: Schneider Electric
Product Code: C103TM032
Availability: Check availability

VAT-exclusive price: 8.376,00

VAT-inclusive price: 10.051,20

Qnt:

Description
Specification

Trip unit TM32D, ComPacT NSX100/160, 3 poles, thermal magnetic protections, 32A rating

Main
range	ComPacT new generation
range of product	ComPacT NSX100...250 new generation ComPacT NSX100...250 DC new generation
product or component type	Trip unit
trip unit name	TM-D
trip unit technology	Thermal-magnetic
range compatibility	ComPacT new generation NSX100 ComPacT new generation NSX160 ComPacT new generation NSX100 DC
device application	Distribution
poles description	3P
protected poles description	3D
trip unit protection functions	LI
protection type	L : for overload protection (thermal) I : for short-circuit protection (magnetic)
Trip unit rating	32 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz 750 V DC
network type	AC DC
network frequency	50/60 Hz
Circuit breaker mounting mode	Fixed

Complementary
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable
[Ir] long-time protection pick-up adjustment range	0.7...1 x In
Long-time protection delay adjustment type tr	Fixed
[tr] long-time protection delay adjustment range	120…400 s at 1.5 x In 15 s at 6 x Ir
Instantaneous protection pick-up adjustment type Ii	Fixed
[Ii] instantaneous protection pick-up adjustment range	400 A
earth-leakage protection	Without

Environment
standards	EN/IEC 60947-2
electrical shock protection class	Class II
pollution degree	3 conforming to IEC 60947-1
IP degree of protection	IP40 conforming to IEC 60529
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	422.0 g
Package 1 Height	7.0 cm
Package 1 width	10.0 cm
Package 1 Length	11.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	28
Package 2 Weight	12.154 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Main
range	ComPacT new generation
range of product	ComPacT NSX100...250 new generation ComPacT NSX100...250 DC new generation
product or component type	Trip unit
trip unit name	TM-D
trip unit technology	Thermal-magnetic
range compatibility	ComPacT new generation NSX100 ComPacT new generation NSX160 ComPacT new generation NSX100 DC
device application	Distribution
poles description	3P
protected poles description	3D
trip unit protection functions	LI
protection type	L : for overload protection (thermal) I : for short-circuit protection (magnetic)
Trip unit rating	32 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz 750 V DC
network type	AC DC
network frequency	50/60 Hz
Circuit breaker mounting mode	Fixed

Complementary
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable
[Ir] long-time protection pick-up adjustment range	0.7...1 x In
Long-time protection delay adjustment type tr	Fixed
[tr] long-time protection delay adjustment range	120…400 s at 1.5 x In 15 s at 6 x Ir
Instantaneous protection pick-up adjustment type Ii	Fixed
[Ii] instantaneous protection pick-up adjustment range	400 A
earth-leakage protection	Without

Environment
standards	EN/IEC 60947-2
electrical shock protection class	Class II
pollution degree	3 conforming to IEC 60947-1
IP degree of protection	IP40 conforming to IEC 60529
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	422.0 g
Package 1 Height	7.0 cm
Package 1 width	10.0 cm
Package 1 Length	11.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	28
Package 2 Weight	12.154 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
