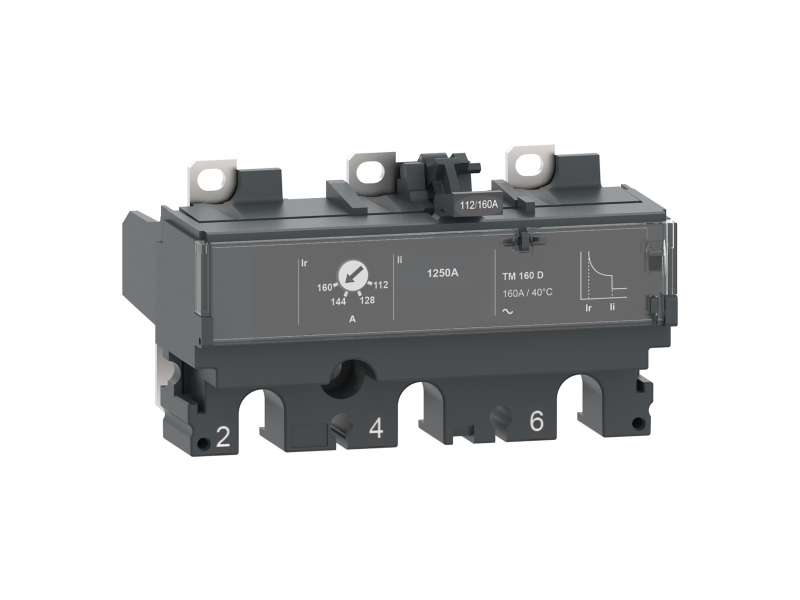

Schneider Electric Zaštitna jedinica TM160D, ComPacT NSX160, 3P, termomagnetna zaštita, 160A; C163TM160
Trip unit TM160D, ComPacT NSX160, 3 poles, thermal magnetic protections, 160A rating; C163TM160...
VAT-exclusive price: 19.581,00 |
VAT-inclusive price: 23.497,20 |
Trip unit TM160D, ComPacT NSX160, 3 poles, thermal magnetic protections, 160A rating; C163TM160
| Range | ComPacT new generation |
|---|---|
| Range of product | ComPacT NSX100...250 new generation |
| Product or component type | Trip unit |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| range compatibility | ComPacT new generation NSX160 |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| Trip unit protection functions | LI |
| protection type |
L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
| Trip unit rating | 160 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Fixed |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable |
|---|---|
| [Ir] long-time protection pick-up adjustment range | 0.7...1 x In |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range |
120…400 s at 1.5 x In 15 s at 6 x Ir |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 1250 A |
| Earth-leakage protection | Without |
