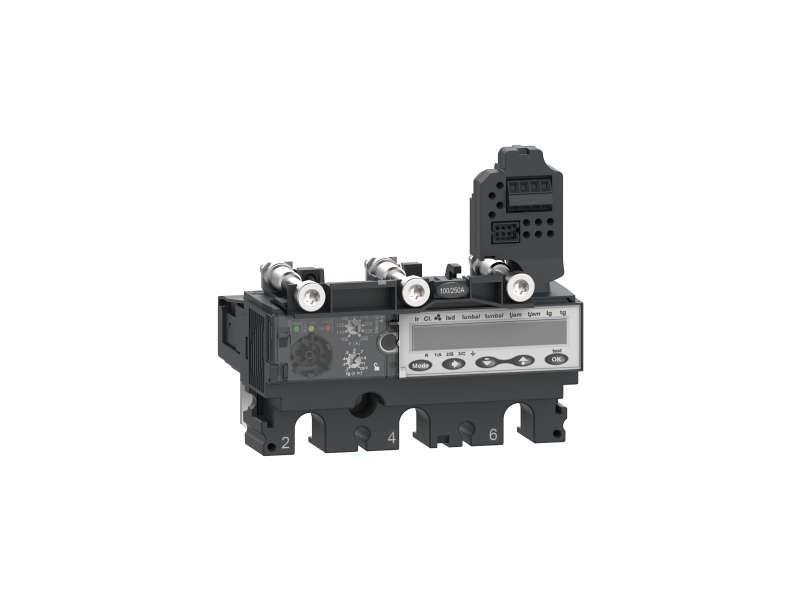

Schneider Electric Zaštitna jedinica MicroLogic 6.2 EM za ComPacT NSX 100/160/250 prekidače, elektronska, struja 25 A, 3P 3d;C1036M025
Trip unit MicroLogic 6.2EM, ComPacT NSX100-250, 3 poles, basic and ground fault protections, motor, energy meter, 25A...
VAT-exclusive price: 35.050,60 |
VAT-inclusive price: 42.060,72 |
Trip unit MicroLogic 6.2EM, ComPacT NSX100-250, 3 poles, basic and ground fault protections, motor, energy meter, 25A
| range | ComPacT new generation |
|---|---|
| range of product | ComPacT NSX100...250 new generation |
| product or component type | Trip unit |
| trip unit name | Micrologic 6.2 E-M |
| trip unit technology | Electronic |
| range compatibility |
ComPacT new generation NSX100 ComPacT new generation NSX160 ComPacT new generation NSX250 |
| device application | Motor |
| poles description | 3P |
| protected poles description | 3D |
| trip unit protection functions | LSIG |
| protection type |
L : for overload protection (long time) S : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection G : for ground fault protection |
| Trip unit rating | 25 A at 65 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Fixed |
| motor tripping class |
20 30 10 5 |
|---|---|
| complementary motor protection |
Current unbalance Stalled rotor Underload Protracted starting time |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 12...25 A |
| Long-time protection delay adjustment type tr | Adjustable |
| [tr] long-time protection delay adjustment range |
120 s at 1.5 x Ir for trip class 5 6.5 s at 6 x Ir for trip class 5 5 s at 7.2 x Ir for trip class 5 240 s at 1.5 x Ir for trip class 10 13.5 s at 6 x Ir for trip class 10 10 s at 7.2 x Ir for trip class 10 480 s at 1.5 x Ir for trip class 20 26 s at 6 x Ir for trip class 20 20 s at 7.2 x Ir for trip class 20 720 s at 1.5 x Ir for trip class 30 |
| thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 5...13 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 425 A |
| Ground-fault protection pick-up adjustment type Ig | Adjustable |
| [Ig] ground-fault protection pick-up adjustment range |
0.6...1 x In Ig enable on/off |
| Ground-fault protection time delay adjustment type tg | Adjustable |
| [tg] ground-fault protection time delay adjustment range | 0…0.4 s |
| earth-leakage protection | Without |
| zone selective interlocking ZSI | With |
| local signalling |
Flashing LED (green) for ready to operate LED 95 % Ith (red) for temperature over set point |
| display type | LCD display |
| type of measurement | Energy meter |
| communication of data |
Energy metering Protection and alarm settings Time-stamped histories and event tables Instantaneous and demand values Maintenance indicators Demand current and power Power quality Maximeters/minimeters |
| electrical data recording | Maintenance indicators |
| standards | EN/IEC 60947-2 |
|---|---|
| electrical shock protection class | Class II |
| pollution degree | 3 conforming to IEC 60947-1 |
| IP degree of protection | IP40 conforming to IEC 60529 |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 540.0 g |
| Package 1 Height | 9.8 cm |
| Package 1 width | 11.0 cm |
| Package 1 Length | 15.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 11 |
| Package 2 Weight | 6.392 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 150 |
| range | ComPacT new generation |
|---|---|
| range of product | ComPacT NSX100...250 new generation |
| product or component type | Trip unit |
| trip unit name | Micrologic 6.2 E-M |
| trip unit technology | Electronic |
| range compatibility |
ComPacT new generation NSX100 ComPacT new generation NSX160 ComPacT new generation NSX250 |
| device application | Motor |
| poles description | 3P |
| protected poles description | 3D |
| trip unit protection functions | LSIG |
| protection type |
L : for overload protection (long time) S : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection G : for ground fault protection |
| Trip unit rating | 25 A at 65 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| network type | AC |
| network frequency | 50/60 Hz |
| Circuit breaker mounting mode | Fixed |
| motor tripping class |
20 30 10 5 |
|---|---|
| complementary motor protection |
Current unbalance Stalled rotor Underload Protracted starting time |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 12...25 A |
| Long-time protection delay adjustment type tr | Adjustable |
| [tr] long-time protection delay adjustment range |
120 s at 1.5 x Ir for trip class 5 6.5 s at 6 x Ir for trip class 5 5 s at 7.2 x Ir for trip class 5 240 s at 1.5 x Ir for trip class 10 13.5 s at 6 x Ir for trip class 10 10 s at 7.2 x Ir for trip class 10 480 s at 1.5 x Ir for trip class 20 26 s at 6 x Ir for trip class 20 20 s at 7.2 x Ir for trip class 20 720 s at 1.5 x Ir for trip class 30 |
| thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 5...13 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 425 A |
| Ground-fault protection pick-up adjustment type Ig |
