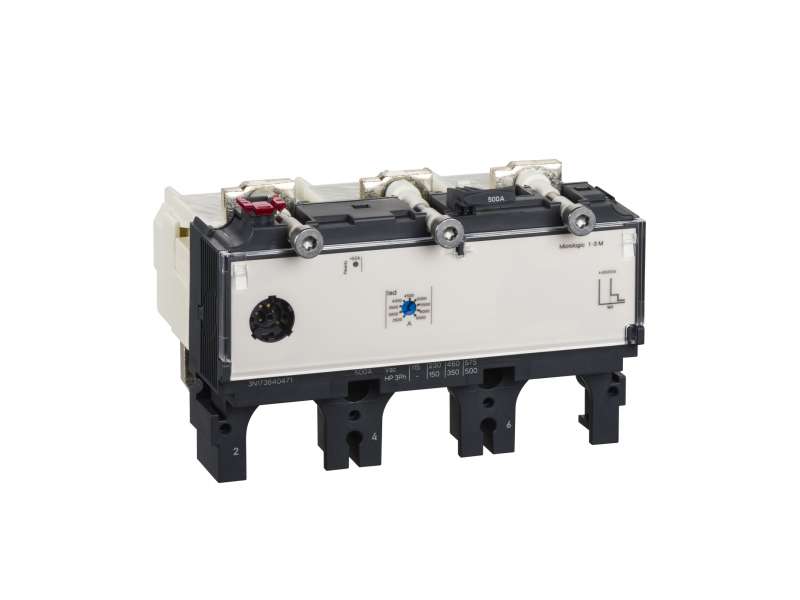

Schneider Electric Zaštitna jedinica - Micrologic 1.3 M - 320 A - 3P 3d; LV432069
Schneider Trip unit MicroLogic 1.3 M for ComPact NSX 400/630 circuit breakers, electronic, rating 320 A, 3 poles 3d; LV432069...
Price on request
Schneider Trip unit MicroLogic 1.3 M for ComPact NSX 400/630 circuit breakers, electronic, rating 320 A, 3 poles 3d; LV432069
| range |
ComPact
|
|
|---|---|---|
| range of product |
ComPact NSX400...630
|
|
| product or component type |
Trip unit
|
|
| trip unit name |
Micrologic 1.3 M
|
|
| trip unit technology |
Electronic
|
|
| range compatibility |
ComPact NSX400
ComPact NSX630 |
|
| device application |
Motor
|
|
| Number of poles |
3P
|
|
| protected poles description |
3t
|
|
| trip unit protection functions |
I
|
|
| protection type |
I : for short-circuit protection (magnetic)
|
|
| Trip unit rated current |
320 A at 65 °C
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| network type |
AC
|
|
| network frequency |
50/60 Hz
|
| Short-time protection pick-up adjustment type Isd |
Adjustable 9 settings
|
|
|---|---|---|
| [Isd] Short-time protection pick-up adjustment range |
2880 A
3520 A 1600 A 4160 A 3840 A 2240 A 1920 A 2560 A 3200 A |
|
| Short-time protection delay adjustment type tsd |
Fixed
|
|
| [tsd] Short-time protection delay adjustment range |
0.01 s
|
|
| Instantaneous protection pick-up adjustment type Ii |
Fixed
|
|
| [Ii] instantaneous protection pick-up adjustment range |
4800 A
|
|
| earth-leakage protection |
Without
|
|
| local signalling |
Flashing LED (green) for ready to operate
|
| standards |
UL 508
EN/IEC 60947-2 |
|
|---|---|---|
| product certifications |
Marine
CCC EAC |
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.406 kg
|
|
| Package 1 Height |
13.8 cm
|
|
| Package 1 width |
17.6 cm
|
|
| Package 1 Length |
21.6 cm
|
|
| Unit Type of Package 2 |
S04
|
|
| Number of Units in Package 2 |
10
|
|
| Package 2 Weight |
15.276 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
40 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
-
ComPact NSX LV432069
