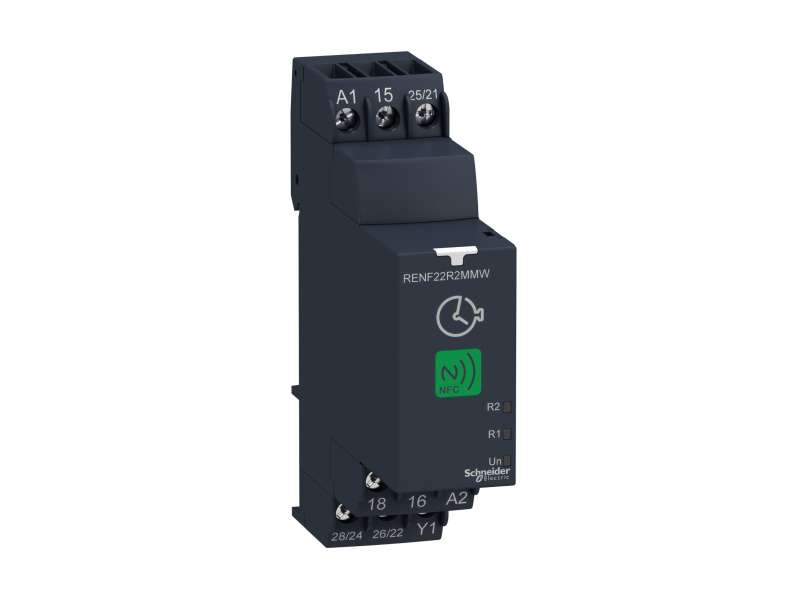

Schneider Electric Vremenski relej NFC 0.1 s..999h - 2C/O 24-240VDC/AC;RENF22R2MMW
Harmony, NFC modular timing relay, 8 A, 2 CO, 0.1 s…999 h, multifunction, 24...240 V AC/DC...
VAT-exclusive price: 14.875,00 |
VAT-inclusive price: 17.850,00 |
Harmony, NFC modular timing relay, 8 A, 2 CO, 0.1 s…999 h, multifunction, 24...240 V AC/DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Power on-delay relay
On-delay and off-delay relay Pulse delayed relay Asymmetrical on-delay and off-delay relay Interval relay Off-delay relay Symmetrical flashing relay Safe-guard relay Star-delta relay Asymmetrical flashing relay Bistable relay |
|
| device short name |
RENF22
|
|
| Supported OS |
Android
|
|
| software version |
V4.4 and above
|
|
| App for product |
Zelio NFC (downloadable from Google Play store)
|
| discrete output type |
Relay
|
|
|---|---|---|
| nominal output current |
8 A
|
|
| contacts type and composition |
2 C/O timed contact, cadmium free
1 C/O timed and instantaneous contact, cadmium free |
|
| time delay type |
A
Ac Ad Ah Ak At B Bw C D Di Dt Dit H Ht L Li Lt Lit N O P Pt Qt Qtt Tl Tt W |
|
| time delay range |
0.1 s...999 h
|
|
| product compatibility |
NFC enabled mobile device
|
|
| [Us] rated supply voltage |
24...240 V AC/DC
|
|
| Release input voltage |
<= 2.4 V
|
|
| voltage range |
0.85...1.1 Un
|
|
| Maximum RF power transmitted |
0.0002 mW
|
|
| NFC operating frequency |
13.56 MHz
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| connections - terminals |
Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
|
| tightening torque |
0.6…1 N.m conforming to IEC 60947-1
0.60…0.99 N.m conforming to IEC 60947-1 |
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.2 % for 10 s...999 h time delay range
+/- 0.5 % for 100 ms...10 s time delay range |
|
| temperature drift |
+/- 0.05 %/°C
|
|
| voltage drift |
+/- 0.2 %/V
|
|
| setting accuracy of time delay |
+/- 1 % for 1...999 h time delay range at 25 °C
+/- 2 % for 1 h time delay range at 25 °C +/- 20 ms for 100 ms...10 s time delay range at 25 °C |
|
| Control signal pulse width |
100 ms with load in parallel
60 ms no-load |
|
| insulation resistance |
100 MOhm at 500 V DC conforming to IEC 60664-1
|
|
| Recovery time |
120 ms on de-energisation
|
|
| power consumption in VA |
3 VA at 240 V AC
|
|
| power consumption in W |
1.5 W at 240 V DC
0.6 W at 24 V DC |
|
| switching capacity in VA |
2000 VA
|
|
| minimum switching current |
10 mA at 5 V
|
|
| maximum switching current |
8 A
|
|
| maximum switching voltage |
250 V
|
|
| electrical durability |
100000 cycles for resistive load, 8 A at 250 V, AC
|
|
| mechanical durability |
10000000 cycles
|
|
| Rated impulse withstand voltage |
5 kV 1.2/50 µs conforming to IEC 60664-1
|
|
| power on delay |
100 ms
|
|
| creepage distance |
4 kV/3 conforming to IEC 60664-1
|
|
| overvoltage category |
III conforming to IEC 60664-1
|
|
| safety reliability data |
MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C
|
|
| mounting position |
Any position
|
|
| mounting support |
35 mm DIN rail conforming to EN/IEC 60715
|
-
Zelio Time RENF22R2MMW
