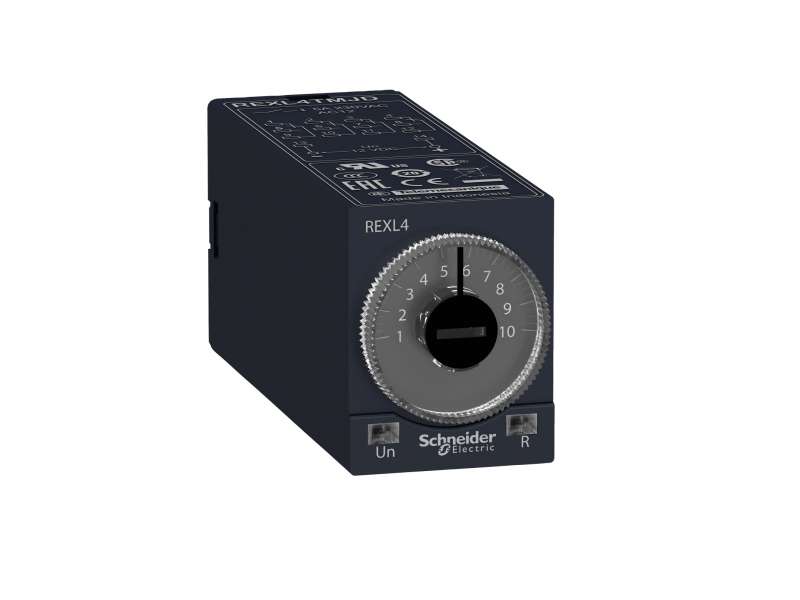

Schneider Electric Vremenski relej kašnjenje po uključenju - 0.1 s..100 h - 230 V AC - 4 OC;REXL4TMP7
Harmony, Miniature plug-in timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 230 V AC...
VAT-exclusive price: 3.858,00 |
VAT-inclusive price: 4.629,60 |
Harmony, Miniature plug-in timing relay, 5 A, 4 CO, 0.1 s..100 h, on-Delay, 230 V AC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Power on-delay relay
|
|
| fixing mode |
Plug-in (socket)
|
|
| discrete output type |
Relay
|
|
| contacts type and composition |
4 C/O
|
|
| component name |
REXL
|
|
| time delay type |
A
|
|
| time delay range |
6...60 s
1...10 s 6...60 min 1...10 min 0.1...1 s 10...100 h 1...10 h |
| contacts material |
Cadmium free
|
|
|---|---|---|
| [Us] rated supply voltage |
230 V AC 50/60 Hz
|
|
| voltage range |
0.85...1.15 Us
|
|
| [In] rated current |
5 A AC
|
|
| repeat accuracy |
+/- 0.5 %
|
|
| setting accuracy of time delay |
10 % at full scale at 25 °C conforming to EN/IEC 61812-1
|
|
| temperature drift |
0.05 %/°C
|
|
| maximum reset time |
250 ms after time delay, on de-energisation
50 ms during time delay, on de-energisation |
|
| voltage drift |
+/- 0.2 %/V
|
|
| maximum switching capacity |
4 x 5 A
|
|
| maximum temporary permissible current |
10 A for < 10 s
|
|
| minimum switching current |
100 mA
|
|
| electrical durability |
100000 cycles at 250 V AC resistive
|
|
| mechanical durability |
10000000 cycles
|
|
| maximum power consumption |
3 VA
|
|
| [Ui] rated insulation voltage |
250 V conforming to IEC 255 Group C
250 V conforming to VDE 0010 |
|
| output overvoltage protection |
2 J
|
|
| surge withstand |
2 kV conforming to EN/IEC 61000-4-5 level 3
|
|
| creepage distance |
4 kV/3 conforming to IEC 60664-1
|
|
| local signalling |
1 LED (red) for output in operation
1 LED (yellow) for power ON |
|
| net weight |
0.05 kg
|
| immunity to microbreaks |
5 ms
|
|
|---|---|---|
| dielectric strength |
2 kV for 1 mA/1 minute at 50 Hz conforming to EN/IEC 60601-1
2 kV for 1 mA/1 minute at 50 Hz conforming to EN/IEC 61812-1 |
|
| standards |
EN 61000-6-2
EN 50081-2 EN/IEC 60601-1 EN/IEC 60601-2 73/23/EEC 93/68/EEC 89/336/EEC EN/IEC 61812-1 |
|
| product certifications |
CUL
UL |
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| IP degree of protection |
IP50 conforming to IEC 60529
|
|
| vibration resistance |
0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
|
|
| relative humidity |
95 % without condensation conforming to IEC 60068-2-6
|
|
| resistance to electrostatic discharge |
6 kV in contact conforming to EN/IEC 61000-4-2 level 3
8 kV in air conforming to EN/IEC 61000-4-2 level 3 |
|
| resistance to electromagnetic fields |
10 V/m conforming to EN/IEC 61000-4-3 level 3
|
|
| resistance to fast transients |
2 kV conforming to EN/IEC 61000-4-4 level 3
|
|
| immunity to radioelectric fields |
10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6 level 3
|
|
| immunity to voltage dips |
>= 95 % / 1 s conforming to EN/IEC 61000-4-11
30 % / 10 ms conforming to EN/IEC 61000-4-11 60 % / 100 ms conforming to EN/IEC 61000-4-11 |
|
-
Zelio Time REXL4TMP7
