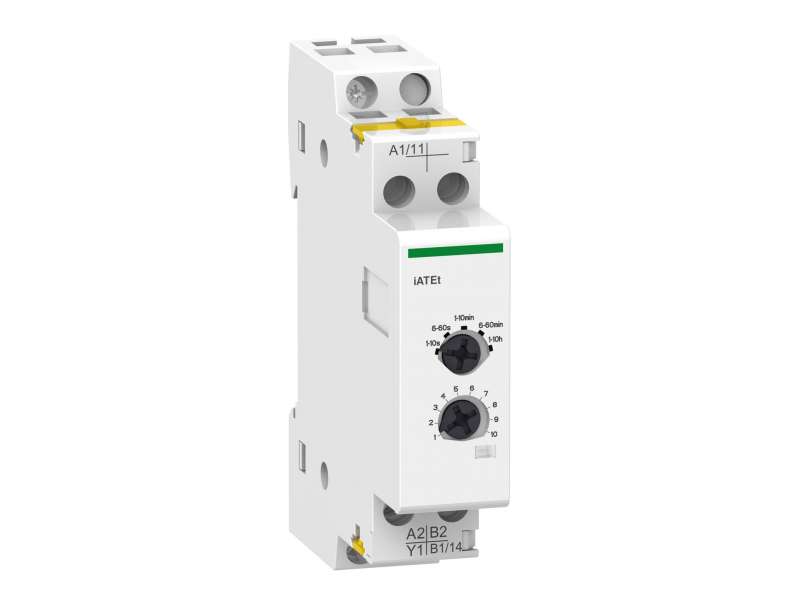

Name: Schneider Electric Vremenski relej iATEt 24/240 VAC; A9C15419
Brand: Schneider Electric
SKU: A9C15419
Price: 22970.40 RSD
Availability: OutOfStock

Schneider Electric Vremenski relej iATEt 24/240 VAC; A9C15419

Acti9 time delay iATEt...

Brand: Schneider Electric
Product Code: A9C15419
Availability: Check availability

VAT-exclusive price: 19.142,00

VAT-inclusive price: 22.970,40

Qnt:

Acti9 time delay iATEt

Main
range	Acti 9
product or component type	Time delay auxiliary
device short name	IATEt
[Uc] control circuit voltage	24...110 V DC impulse 24...240 V AC 50/60 Hz maintained

Complementary
type of setting	Time delay configuration
time delay range	2 s...10 min 2 s...10 h 6...60 s 1...10 s 6 s...1 h
maximum output current	0.2 A holding 3 A inrush
hold-in power consumption in VA	5 VA
mounting mode	Fixed, on the left of TL or CT
mounting support	DIN rail
9 mm pitches	2
height	81 mm
width	18 mm
depth	60 mm
colour	White
overvoltage category	III
[Uimp] rated impulse withstand voltage	4 kV
[Ui] rated insulation voltage	440 V
standards	EN/IEC 60669-2-2
connections - terminals	Output connection: yellow clips Input connection: tunnel type terminals 2 cable(s) 2.5 mm² flexible Input connection: tunnel type terminals 2 cable(s) 1.5 mm² rigid
wire stripping length	9 mm
tightening torque	0.8 N.m
range compatibility	Acti9 iCT Acti9 iTL
market segment	Small commercial Residential
compatibility code	IATEt

Environment
IP degree of protection	IP20 conforming to IEC 60529
ambient air temperature for operation	-20…50 °C
ambient air temperature for storage	40…80 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	85 g
Package 1 Height	2.3 cm
Package 1 width	8 cm
Package 1 Length	9 cm
Unit Type of Package 2	S03
Number of Units in Package 2	108
Package 2 Weight	9.897 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
