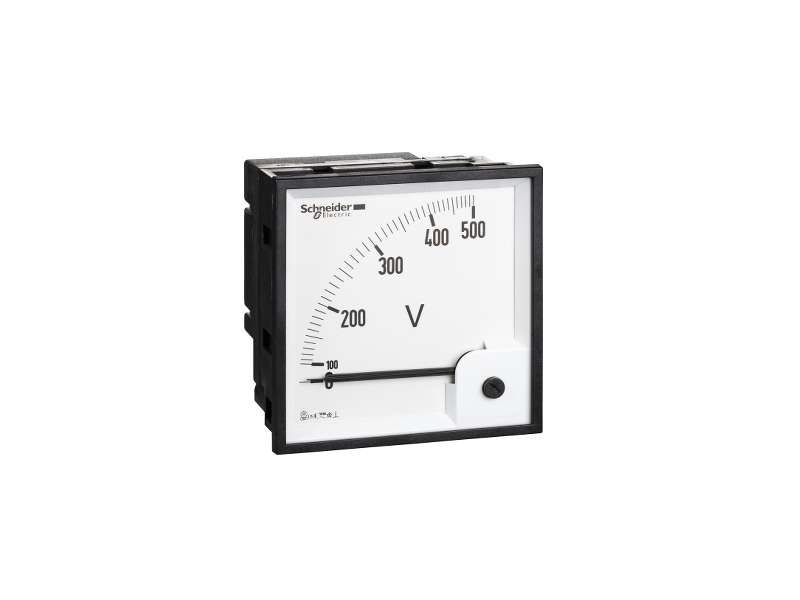

Schneider Electric Voltmetar VLT PowerLogic - 96 x 96 - feromagnetni - 0..500 V;16075

voltmeter VLT PowerLogic - 96 x 96 - ferromagnetic - 0..500 V...

Brand: Schneider Electric
Product Code: 16075
Availability: Check availability

VAT-exclusive price: 5.688,00

VAT-inclusive price: 6.825,60

Qnt:

Description
Specification

voltmeter VLT PowerLogic - 96 x 96 - ferromagnetic - 0..500 V

Main
range	PowerLogic
device short name	VLT
product or component type	Voltmeter
range compatibility	Prisma P door Prisma G door
scale	0-500 V
technology type	Ferromagnetic
scale type	80 mm over 90°
mounting support	Front face

Complementary
type of measurement	Voltage
accuracy class	Class 1.5
power consumption in VA	3 VA
power consumption in VA	3 VA
overload withstand	1.2 Un, permanently 2 Un, 5 s
device mounting	Flush
operating position	30°/vertical
width	96 mm
height	96 mm
depth	75 mm
temperature drift	+/- 0.003 %/°C

Environment
standards	IEC 61000-4 IEC 60051-1 IEC 61010-1
IP degree of protection	IP52
ambient air temperature for operation	-25…50 °C
reference temperature	23 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	282.0 g
Package 1 Height	10.5 cm
Package 1 width	11 cm
Package 1 Length	11.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	12
Package 2 Weight	3.83 kg
Package 2 Height	30 cm
Package 2 width	30 cm
Package 2 Length	40 cm
