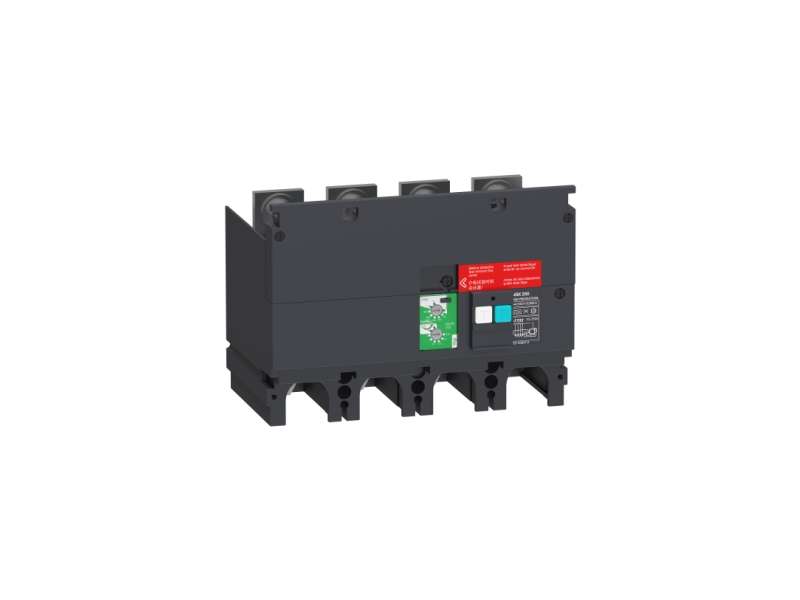

Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 200VAC to 440VAC, 30mA to 30A, 4 poles
Main
|
range of product |
ComPacT NSX400...630 new generation
ComPact NSX400...630 |
|
device short name |
VigiPacT |
|
product or component type |
Vigi add-on |
|
device application |
Wiring |
|
range compatibility |
ComPacT NSX400 new generation circuit breaker
ComPacT NSX630 new generation circuit breaker
ComPact NSX400 circuit breaker
ComPact NSX630 circuit breaker |
|
poles description |
4P |
|
[In] rated current |
400 A
630 A |
|
earth-leakage protection class |
Class A
Class AC |
|
residual earth-leakage sensitity adjustment type |
Adjustable |
|
earth-leakage sensitivity |
0.03 A for class A
0.1 A for class A
0.3 A for class A
0.5 A for class A
1 A for class A
3 A for class A
10 A for class AC
30 A for class AC |
|
residual earth-leakage time delay adjustment type |
Adjustable |
|
[Δt] residual earth-leakage time delay adjustment |
0 ms
60 ms
150 ms
300 ms
500 ms
800 ms
1.2 s
4 s |
Complementary
|
network type |
AC |
|
network frequency |
50/60 Hz |
|
[Ue] rated operational voltage |
200...440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
earth-leakage protection |
With |
|
maximum breaking time |
800 ms |
|
overvoltage category |
IV |
Environment
|
electrical shock protection class |
Class II |
|
standards |
IEC 60947-2 |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
3.34 kg |
|
Package 1 Height |
14.0 cm |
|
Package 1 width |
17.0 cm |
|
Package 1 Length |
20.0 cm |
|
Unit Type of Package 2 |
P12 |
|
Number of Units in Package 2 |
24 |
|
Package 2 Weight |
95.2 kg |
|
Package 2 Height |
45.0 cm |
|
Package 2 width |
80.0 cm |
|
Package 2 Length |
120.0 cm |
|
