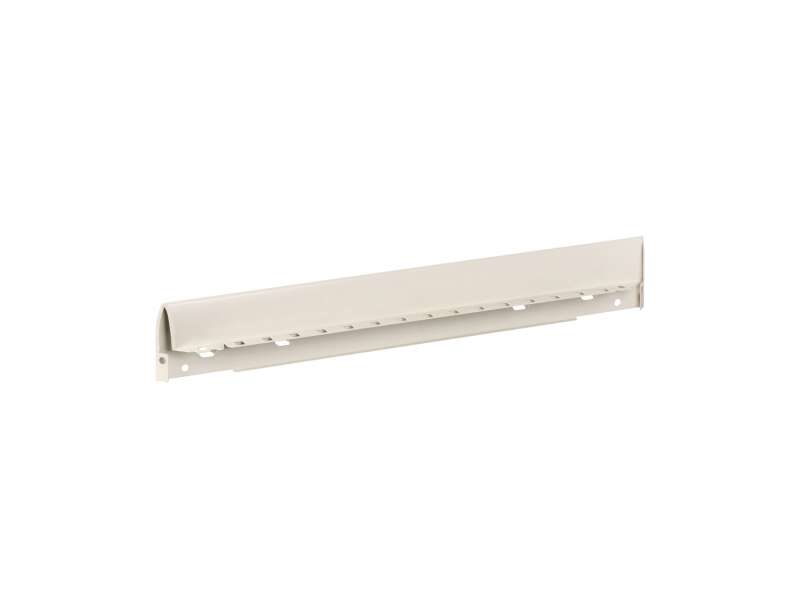

Schneider Electric Vertikalni profil 15M PRISMA G IP30; LVS01065

COMBINATION PROFILE 15M PRISMA G IP30...

Brand: Schneider Electric
Product Code: LVS01065
Availability: Check availability

VAT-exclusive price: 5.157,00

VAT-inclusive price: 6.188,40

Qnt:

COMBINATION PROFILE 15M PRISMA G IP30

Main
Range	PrismaSeT
Range of product	PrismaSeT G PrismaSeT G Active
Product or component type	Central upright
Accessory / separate part category	Enclosure accessory Spare part
Range compatibility	PrismaSeT (PrismaSeT G) enclosure
IP degree of protection	IP30
Accessory / separate part destination	For side by side framework combination

Complementary
installation description	Wall-mounted enclosure - width 600 mm Wall-mounted enclosure - width 300 mm
Number of vertical modules [50 mm]	15
Mounting location	Side by side
Quantity per set	Set of 1
Height	780 mm
Surface finish	Matt Textured
Protective treatment	Electrophoresis treatment and hot-polymerised polyester epoxy powder
Colour	White (RAL 9003)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.0 cm
Package 1 Width	20.5 cm
Package 1 Length	113.0 cm
Package 1 Weight	1.052 kg
Unit Type of Package 2	P12
Number of Units in Package 2	12
Package 2 Height	34.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
Package 2 Weight	26.0 kg
