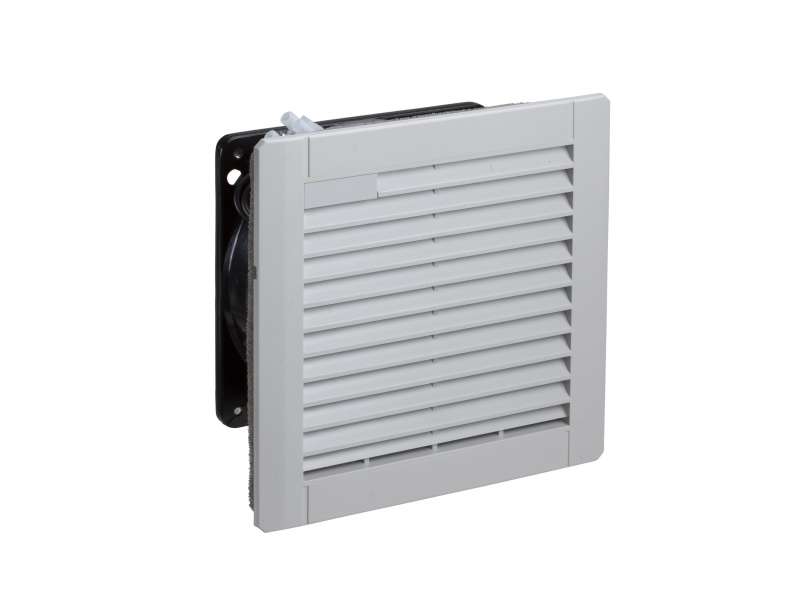

Schneider Electric Ventilator CEM 156 m3/h; NSY17991
Ventilator CEM 156 m3/h...
VAT-exclusive price: 34.420,00 |
VAT-inclusive price: 41.304,00 |
Ventilator CEM 156 m3/h
| range |
ClimaSys
|
|
|---|---|---|
| product name |
ClimaSys CV
|
|
| product or component type |
EMC fan
|
|
| Type of filter |
Standard
|
|
| Flow rate |
Free flow rate: 156 m3/h at 50 Hz
|
|
| input voltage |
230 V 50/60 Hz
|
| height |
252 mm external:
|
|
|---|---|---|
| width |
252 mm external:
|
|
| depth |
97 mm external:
|
|
| cut-out dimensions |
224 x 224 mm
|
|
| material |
Outlet grille: ABS (acrylonitrile butadiene-styrene)
Frame of axial motor: steel Gasket: berylium |
|
| colour |
Outlet grille: grey (RAL 7035)
|
|
| IP degree of protection |
IP54
|
|
| device composition |
1 axial motor
2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 EMC outlet grille: front 1 gasket: between fan and enclosure |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.8 kg
|
|
| Package 1 Height |
18.5 cm
|
|
| Package 1 width |
25.5 cm
|
|
| Package 1 Length |
26 cm
|
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
| Warranty |
18 months
|
|---|
-
ClimaSys CV NSY17991
