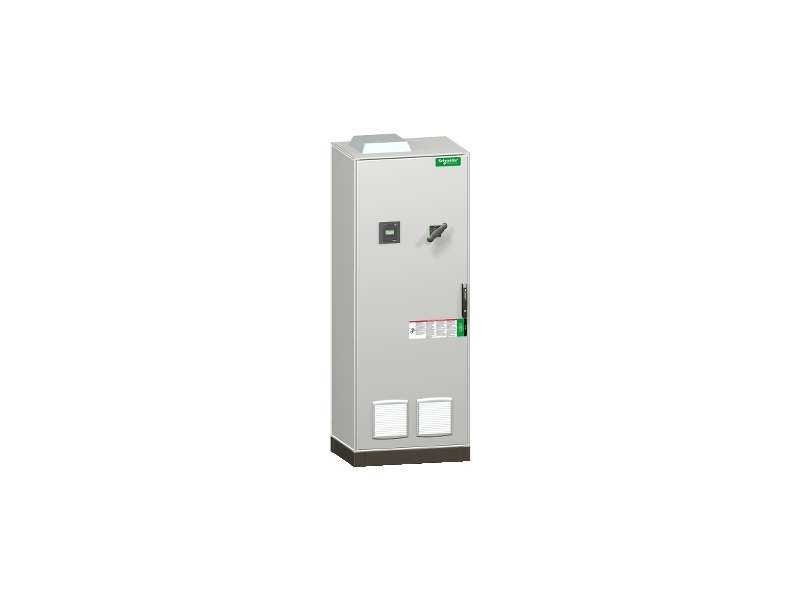

Schneider Electric VarSet orman kompenzacije reaktivne energije - aut. 350 kVAr xxB 400V 50Hz;VLVAF5N03517AB

VarSet capacitor bank Auto 350kvar xxB 400V 50Hz...

Brand: Schneider Electric
Product Code: VLVAF5N03517AB
Availability: Check availability

VAT-exclusive price: 1.705.789,00

VAT-inclusive price: 2.046.946,80

Qnt:

Description
Specification

VarSet capacitor bank Auto 350kvar xxB 400V 50Hz

Main
network rated voltage	400 V AC 50 Hz 415 V AC 50 Hz
reactive power rating	350 kvar
operating mode	Automatic
range	VarSet
device short name	VarSet automatic
product or component type	Capacitor bank

Complementary
network pollution level	Low polluted
[Gh/Sn] harmonic pollution rate	15…25 %
[THDU] total harmonic distorsion of voltage	3…4 %
power per step	50 kvar
step composition	50 + 3x100
location of connection	Bottom
controller type	Varplus Logic VPL6 Modbus
capacitor technology	VarplusCan
poles description	3P
capacitance tolerance	- 5 % to 10 %
[Ui] rated insulation voltage	690 V
[Uimp] rated impulse withstand voltage	8 kV
maximum permissible voltage	1.1 x Un (8 hours over 24 hours) conforming to IEC 60831
[Imp] maximum permanent current	Capacitor: 1.8 x In at 480 V conforming to IEC 60831 Battery: 1.43 x In at 400 V conforming to IEC 61439-2 Battery: 1.19 x In at 415 V conforming to IEC 61439-2
main incomer protection	Without protection
[Icw] rated short-time withstand current	35 kA at 1 s (Icw)
step protection type	Overload: harmonic control from VarPlus Logic Short-circuit: fuse
accessibility for operation	Front
colour	Grey (RAL 7035)
maximum weight	434 kg
height	2200 mm
width	800 mm
depth	600 mm
provided equipment	Auxiliary transformer
internal voltage transformer	400/230 V - 630 VA
function available	GenSet shedding contact Alarm contact

Environment
standards	IEC 61439-1 IEC 61439-2 IEC 61921
product certifications	ASEFA EAC CE
mounting location	Indoor
IP degree of protection	Environment: IP31 Safety: IPxx B
IK degree of protection	IK10
relative humidity	0…95 %
operating altitude	<= 2000 m
ambient air temperature for operation	-5…45 °C
average ambient air temperature for operation	35 °C (annual) 45 °C (over 24 hours)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	294.0 kg
Package 1 Height	80.0 cm
Package 1 Width	120.0 cm
Package 1 Length	231.0 cm
Unit Type of Package 2	P12
Number of Units in Package 2	1
Package 2 Weight	306.0 kg
Package 2 Height	230.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm
