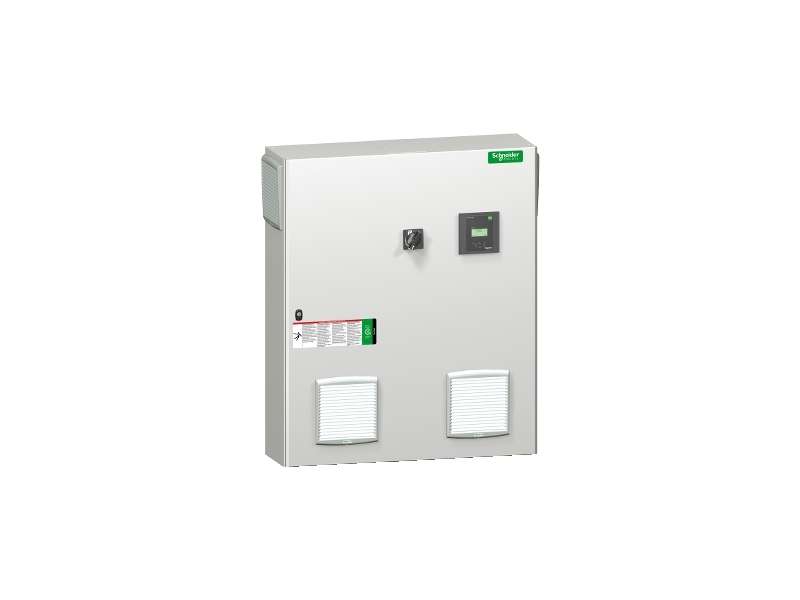

Schneider Electric VarSet orman kompenzacije RE aut. 250kvar xxB 400V 50Hz;VLVAW3N03514AB

VarSet capacitor bank Auto 250kvar xxB 400V 50Hz...

Brand: Schneider Electric
Product Code: VLVAW3N03514AB
Availability: Check availability

VAT-exclusive price: 1.126.279,00

VAT-inclusive price: 1.351.534,80

Qnt:

Description
Specification

VarSet capacitor bank Auto 250kvar xxB 400V 50Hz

Main
network rated voltage	400 V AC 50 Hz 415 V AC 50 Hz
reactive power rating	250 kvar
operating mode	Automatic
range	VarSet
device short name	VarSet automatic
product or component type	Capacitor bank

Complementary
network pollution level	Low polluted
[Gh/Sn] harmonic pollution rate	15…25 %
[THDU] total harmonic distorsion of voltage	3…4 %
power per step	25 kvar
step composition	2x25 + 4x50
location of connection	Bottom
controller type	Varplus Logic VPL6 Modbus
capacitor technology	VarplusCan
poles description	3P
capacitance tolerance	- 5 % to 10 %
[Ui] rated insulation voltage	690 V
[Uimp] rated impulse withstand voltage	8 kV
maximum permissible voltage	1.1 x Un (8 hours over 24 hours) conforming to IEC 60831
[Imp] maximum permanent current	Capacitor: 1.8 x In at 480 V conforming to IEC 60831 Battery: 1.43 x In at 400 V conforming to IEC 61439-2 Battery: 1.19 x In at 415 V conforming to IEC 61439-2
main incomer protection	Without protection
[Icw] rated short-time withstand current	30 kA at 1 s (Icw)
step protection type	Overload: harmonic control from VarPlus Logic Short-circuit: upstream protection
accessibility for operation	Front
colour	Grey (RAL 7035)
maximum weight	175 kg
height	1200 mm
width	1000 mm
depth	300 mm
provided equipment	Auxiliary transformer
internal voltage transformer	400/230 V - 400 VA
function available	Alarm contact GenSet shedding contact

Environment
standards	IEC 61921 IEC 61439-1 IEC 61439-2
product certifications	ASEFA EAC CE
mounting location	Indoor
IP degree of protection	Environment: IP31 Safety: IPxx B
IK degree of protection	IK10
relative humidity	0…95 %
operating altitude	<= 2000 m
ambient air temperature for operation	-5…45 °C
average ambient air temperature for operation	35 °C (annual) 45 °C (over 24 hours)

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	152.0 kg
Package 1 Height	134.0 cm
Package 1 Width	80.0 cm
Package 1 Length	120.0 cm
Unit Type of Package 2	P12
Number of Units in Package 2	1
Package 2 Weight	164.0 kg
Package 2 Height	230.0 cm
Package 2 Width	80.0 cm
Package 2 Length	120.0 cm

Contractual warranty
Warranty	18 months
