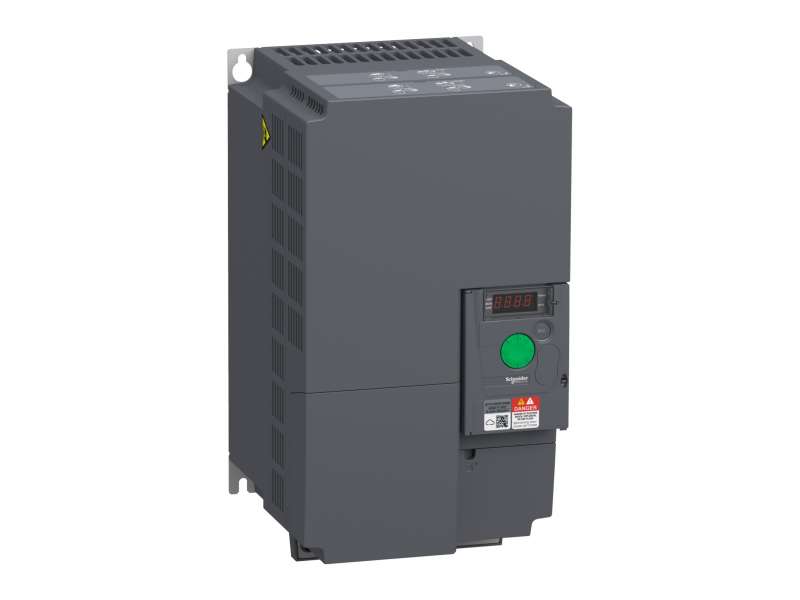

Schneider Electric Variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, without filter; ATV310HD18N4E
variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, without filter; ATV310HD18N4E...
VAT-exclusive price: 129.792,00 |
VAT-inclusive price: 155.750,40 |
variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, without filter; ATV310HD18N4E
| Range of product | Easy Altivar 310 |
|---|---|
| Product or component type | Variable speed drive |
| Product specific application | Simple machine |
| Assembly style | With heat sink |
| Device short name | ATV310 |
| Network number of phases | Three phase |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| motor power kW | 18.5 kW |
| motor power hp | 25 hp |
| Noise level | 50 dB |
| Product destination | Asynchronous motors |
|---|---|
| Quantity per set | Set of 1 |
| EMC filter | Without EMC filter |
| Type of cooling | Integrated fan |
| supply frequency | 50/60 Hz +/- 5 % |
| communication port protocol | Modbus |
| connector type | RJ45 (on front face) for Modbus |
| physical interface | 2-wire RS 485 for Modbus |
| transmission frame | RTU for Modbus |
| transmission rate |
4800 bit/s 9600 bit/s 19200 bit/s 38400 bit/s |
| number of addresses | 1…247 for Modbus |
| communication service |
Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| line current | 55.3 A |
| Apparent power | 36.5 kVA |
| Prospective line Isc | 22 kA |
| continuous output current | 39 A at 4 kHz |
| maximum transient current | 58.5 A for 60 s |
| power dissipation in W | 499.6 W at In |
| Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz |
| switching frequency | 2...12 kHz adjustable |
| speed range | 1…20 |
| transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor |
| braking torque |
Up to 150 % of nominal motor torque with braking resistor at high inertia Up to 70 % of nominal motor torque without braking resistor |
| Asynchronous motor control profile |
Quadratic voltage/frequency ratio Quadratic voltage/frequency ratio Sensorless flux vector control |
| Motor slip compensation |
Preset in factory Preset in factory |
| output voltage | 380...460 V three phase |
| electrical connection | Terminal, clamping capacity: 10 mm² (L1, L2, L3, PA/+, PB, U, V, W) |
| Tightening torque | 2.2…2.4 N.m |
| Insulation | Electrical between power and control |
| supply |
Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
| Analogue input number | 1 |
| analogue input type |
Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm |
| Discrete input number | 4 |
| discrete input type | Programmable LI1...LI4 24 V 18...30 V |
| discrete input logic |
Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
| sampling duration |
10 ms for analogue input 20 ms, tolerance +/- 1 ms for logic input |
| linearity error | +/- 0.3 % of maximum value for analogue input |
| Analogue output number | 1 |
| analogue output type |
AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
| Discrete output number | 2 |
| discrete output type |
Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O |
| minimum switching current | 5 mA at 24 V DC for logic relay |
| maximum switching current |
2 A at 250 V AC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay 2 A at 30 V DC on inductive load cos phi = 0.4 L/R = 7 ms for logic relay 3 A at 250 V AC on resistive load cos phi = 1 L/R = 0 ms for logic relay 4 A at 30 V DC on resistive load cos phi = 1 L/R = 0 ms for logic relay |
| Acceleration and deceleration ramps |
U Linear from 0...999.9 s S |
| braking to standstill | By DC injection, <30 s |
| protection type |
Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
| frequency resolution |
Analog input: converter A/D, 10 bits Display unit: 0.1 Hz |
| time constant | 20 ms +/- 1 ms for reference change |
| Operating position | Vertical +/- 10 degree |
| Height | 330 mm |
| Width | 180 mm |
| Depth | 191 mm |
| Net weight | 6.3 kg |
-
Easy Altivar 310 ATV310HD18N4E
Similar products:
Schneider Electric variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, with filter; ATV310HD18N4EF
variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, with filter; ATV310HD18N4EF
-
(Out of stock)
142.769,00
Schneider Electric Variable speed drive ATV310, 0.37 kW, 0.5 hp, 380...460 V, 3 phase;ATV310H037N4E
Variable speed drive ATV310, 0.37 kW, 0.5 hp, 380...460 V, 3 phase
-
(Out of stock)
22.395,00
Schneider Electric Variable speed drive ATV310, 0.75 kW, 1 hp, 380...460 V, 3 phase;ATV310H075N4E
Variable speed drive ATV310, 0.75 kW, 1 hp, 380...460 V, 3 phase
-
(Out of stock)
25.147,00
saving: 3.772,05
21.374,95
Schneider Electric variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, with filter; ATV310HD18N4EF
variable speed drive ATV310, 18.5 kW, 25 hp, 380...460 V, 3 phase, with filter; ATV310HD18N4EF
-
(Out of stock)
142.769,00
Schneider Electric variable speed drive ATV310, 22 kW, 30 hp, 380...460 V, 3 phase, without filter; ATV310HD22N4E
variable speed drive ATV310, 22 kW, 30 hp, 380...460 V, 3 phase, without filter; ATV310HD22N4E
-
(Out of stock)
148.674,00
Schneider Electric variable speed drive ATV310, 22 kW, 30 hp, 380...460 V, 3 phase, with filter; ATV310HD22N4EF
variable speed drive ATV310, 22 kW, 30 hp, 380...460 V, 3 phase, with filter; ATV310HD22N4EF
-
(Out of stock)
163.542,00
