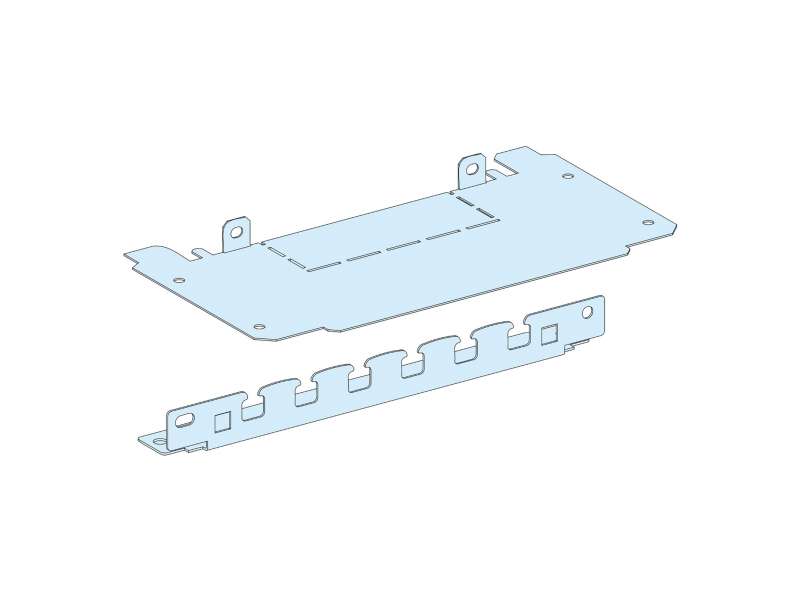

Schneider Electric Uvodnica kabla Š300 za podnožje slobodnostojećeg ormana Prisma G; LVS08888
Gland plate, PrismaSeT G, plinth mounted, for floor-standing enclosure, W300mm, IP31 to IP43, white, RAL 9003...
VAT-exclusive price: 3.006,00 |
VAT-inclusive price: 3.607,20 |
Gland plate, PrismaSeT G, plinth mounted, for floor-standing enclosure, W300mm, IP31 to IP43, white, RAL 9003
| Range of product | PrismaSeT G |
|---|---|
| Range | PrismaSeT |
| Range compatibility | PrismaSeT (PrismaSeT G) enclosure |
| Product or component type | Gland plate |
| Accessory / separate part category | Enclosure accessory |
| Product compatibility |
IP43 enclosure IP31 enclosure IP30 enclosure |
| Provided equipment | 1 gland plate |
| Enclosure/cubicle description | Floor-standing duct - width 300 mm |
|---|---|
| Type of gland plate | Plain |
| Mounting location | Plinth |
| Material | Metal |
| Quantity per set | Set of 1 |
| Width | 287 mm |
| Depth | 160 mm |
| Net weight | 0.42 kg |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| IP degree of protection | IP20 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.3 cm |
| Package 1 Width | 16 cm |
| Package 1 Length | 29 cm |
| Package 1 Weight | 507 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.247 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 32 |
| Package 3 Height | 28 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 30 kg |
-
PrismaSeT G LVS08888 (1)
