Schneider Electric Utičnice RXZ - mešoviti kontakti - 7 A - 250 V - vijačni - za relej RXM2..;RXZE1M2C
Socket RXZ - mixed contact - 7 A - 250 V - screw clamp - for relay RXM2.....
VAT-exclusive price: 216,00 |
VAT-inclusive price: 259,20 |

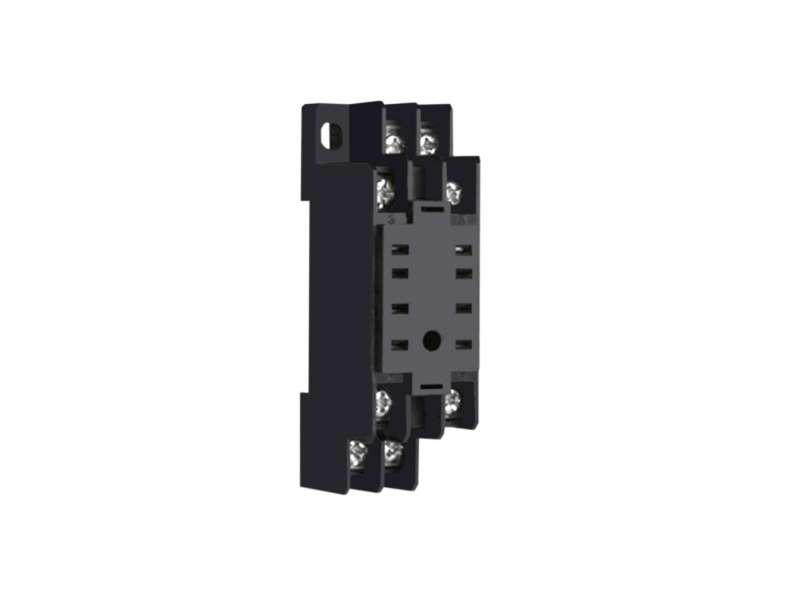

Socket RXZ - mixed contact - 7 A - 250 V - screw clamp - for relay RXM2..
| range of product |
Harmony Electromechanical Relays
|
|
|---|---|---|
| product or component type |
Socket
|
|
| contact terminal arrangement |
Mixed
|
|
| product compatibility |
Plug-in relay RXM with 2 C/O contact
|
|
| device short name |
RXZ
|
|
| sale per indivisible quantity |
10
|
| [Ith] conventional free air thermal current |
7 A
|
|
|---|---|---|
| [Ue] rated operational voltage |
250 V
|
|
| connections - terminals |
Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end Screw clamp terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid without cable end |
|
| tightening torque |
< 0.8 N.m for M3 screw(s)
|
|
| fixing mode |
By screw (panel)
Clip-on (35 mm symmetrical DIN rail) |
|
| marking |
CE
|
|
| width |
22.5 mm
|
|
| net weight |
0.034 kg
|
| standards |
IEC 61984
|
|
|---|---|---|
| ambient air temperature for storage |
-55…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| dielectric strength |
2500 V
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
34 g
|
|
| Package 1 Height |
3 cm
|
|
| Package 1 width |
2.3 cm
|
|
| Package 1 Length |
7.5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
Zelio Electromechanical Relay RXZE1M2C
