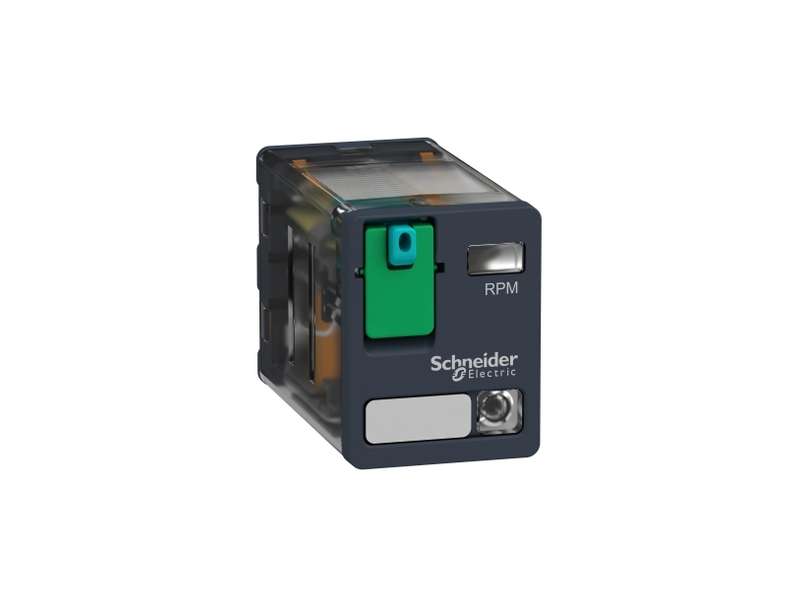

Schneider Electric Utični relej snage - Zelio RPM - 2 C/O - 230 V AC - 15 A - sa LED lampicom;RPM22P7
Harmony, Power plug-in relay, 15 A, 2 CO, with LED, with lockable test button, 230 V AC...
Price on request
Harmony, Power plug-in relay, 15 A, 2 CO, with LED, with lockable test button, 230 V AC
| range of product | Harmony Electromechanical Relays |
|---|---|
| series name | Power |
| product or component type | Plug-in relay |
| device short name | RPM |
| contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| status LED | With |
| control type | Lockable test button |
| utilisation coefficient | 20 % |
| shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage |
250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| contacts material | AgNi |
| [Ie] rated operational current |
15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC |
| maximum switching voltage | 250 V conforming to IEC |
| Resistive load current |
15 A at 250 V AC 15 A at 28 V DC |
| maximum switching capacity |
3750 VA 420 W |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| operating rate |
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 1.1 at 60 Hz |
| drop-out voltage threshold | >= 0.15 Uc AC |
| Operate time | 20 ms at nominal voltage |
| Release time | 20 ms at nominal voltage |
| Average coil resistance | 16270 Ohm at 20 °C +/- 15 % |
| rated operational voltage limits | 184...253 V AC |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
| pollution degree | 3 |
| safety reliability data | B10d = 100000 |
| net weight | 0.036 kg |
| device presentation | Complete product |
| dielectric strength |
1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
|---|---|
| standards |
CSA C22.2 No 14 UL 508 EN/IEC 61810-1 |
| product certifications |
CSA UL EAC |
| ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -40…55 °C |
| vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Degree of protection (Housing only) | IP40 conforming to EN/IEC 60529 |
| shock resistance |
15 gn for in operation 30 gn for not operating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 40.0 g |
| Package 1 Height | 2.104 cm |
| Package 1 width | 2.723 cm |
| Package 1 Length | 4.645 cm |
| Warranty | 18 |
|---|
| range of product | Harmony Electromechanical Relays |
|---|---|
| series name | Power |
| product or component type | Plug-in relay |
| device short name | RPM |
| contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| status LED | With |
| control type | Lockable test button |
| utilisation coefficient | 20 % |
| shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage |
250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| contacts material | AgNi |
| [Ie] rated operational current |
15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC |
| maximum switching voltage | 250 V conforming to IEC |
| Resistive load current |
15 A at 250 V AC 15 A at 28 V DC |
| maximum switching capacity |
3750 VA 420 W |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| operating rate |
<= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 1.1 at 60 Hz |
| drop-out voltage threshold | >= 0.15 Uc AC |
| Operate time | 20 ms at nominal voltage |
| Release time | 20 ms at nominal voltage |
| Average coil resistance | 16270 Ohm at 20 °C +/- 15 % |
| rated operational voltage limits | 184...253 V AC |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
| pollution degree | 3 |
| safety reliability data | B10d = 100000 |
| net weight | 0.036 kg |
| device presentation | Complete product |
| dielectric strength |
1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
|---|---|
| standards |
CSA C22.2 No 14 UL 508 EN/IEC 61810-1 |
