Schneider Electric Utični relej snage - Zelio RPF - 2 NO - 24 V AC - 30 A ; RPF2AB7
power relay plug-in - Zelio RPF - 2 NO - 24 V AC - 30 A...
Price on request

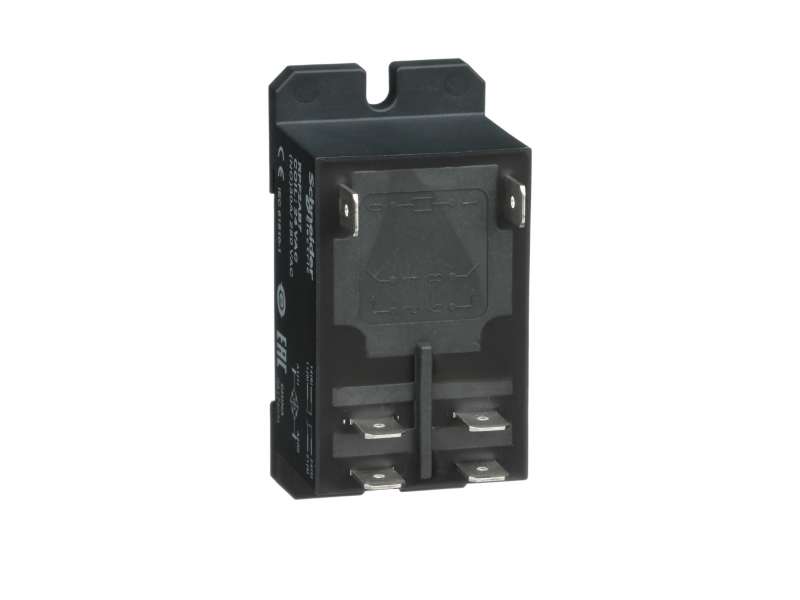

power relay plug-in - Zelio RPF - 2 NO - 24 V AC - 30 A
| mounting support |
DIN rail
Panel |
|
|---|---|---|
| control circuit voltage limits |
19.2...26.4 V
|
|
| [Ie] rated operational current |
30 A at 277 V (AC) NO conforming to UL
20 A at 28 V (DC) NO conforming to UL 30 A at 250 V (AC) NO conforming to IEC 25 A at 28 V (DC) NO conforming to IEC |
|
| [Ui] rated insulation voltage |
250 V conforming to IEC
300 V conforming to UL |
|
| [Uimp] rated impulse withstand voltage |
4 kV during 1.2/50 µs
|
|
| maximum switching voltage |
250 V conforming to IEC
|
|
| maximum switching capacity |
7500 VA/700 W
|
|
| Minimum recommended switching capacity |
6000 mW 500 mA / 12 V for NO
|
|
| operating rate |
<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load |
|
| mechanical durability |
5000000 cycles
|
|
| electrical durability |
100000 cycles for resistive load
|
|
| Average coil consumption |
4 VA at 60 Hz
|
|
| drop-out voltage threshold |
>= 0.15 Uc
|
|
| Operate time |
25 ms
|
|
| Release time |
25 ms
|
|
| average resistance |
170 Ohm at 20 °C +/- 15 %
|
|
| safety reliability data |
B10d = 100000
|
|
| protection category |
RT II
|
|
| test levels |
Level A group mounting
|
|
| operating position |
Any position
|
|
| CAD overall width |
33.7 mm
|
|
| CAD overall height |
68.5 mm
|
|
| CAD overall depth |
39.2 mm
|
|
| net weight |
0.082 kg
|
|
| device presentation |
Complete product
|
| dielectric strength |
2000 V AC between poles with basic
4000 V AC between coil and contact with reinforced 1500 V AC between contacts with micro disconnection |
|
|---|---|---|
| standards |
UL 508
EN/IEC 61810-1 CSA C22.2 No 14 |
|
| product certifications |
UL
CSA GOST CE |
|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
10 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
|
| shock resistance |
10 gn for in operation
30 gn for not operating |
|
| pollution degree |
3
|
| Package 1 Weight |
0.092 kg
|
|
|---|---|---|
| Package 1 Height |
0.420 dm
|
|
| Package 1 width |
0.350 dm
|
|
| Package 1 Length |
0.690 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
18 months
| Warranty |
|---|
| range of product |
Zelio Relay
|
|
|---|---|---|
| series name |
Power
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RPF
|
|
| contacts type and composition |
2 NO
|
|
| [Uc] control circuit voltage |
24 V AC
|
|
| control type |
Without lockable test button
|
|
| shape of pin |
Flat
|
|
| contacts material |
Silver tin oxide
|
|
| [Ithe] conventional enclosed thermal current |
25 A at -40…55 °C relays side by side without a gap
30 A at -40…55 °C 13 mm gap between two relays |
|
| Resistive rated load |
25 A at 28 V DC
30 A at 250 V AC |
|
| utilisation coefficient |
10 %
|
-
Zelio Relays RPF2AB7
