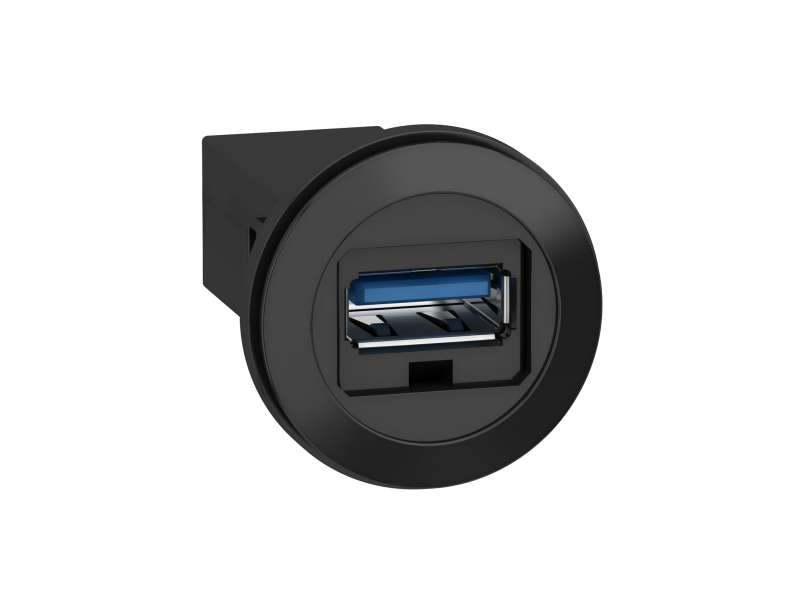

Schneider Electric USB 3.0 port za ugradnju na panel - Ø22 mm - za USB tip A;XB5PUSB3
Panel mounted USB 3.0 port, plastic, Ø22, for USB interface jack type A...
VAT-exclusive price: 3.250,00 |
VAT-inclusive price: 3.900,00 |
Panel mounted USB 3.0 port, plastic, Ø22, for USB interface jack type A
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Panel mounted USB port
|
|
| device short name |
XB5P
|
| sale per indivisible quantity |
1
|
|
|---|---|---|
| mounting diameter |
22 mm
|
|
| thickness |
6 mm without protection cover
1.5…5 mm with protection cover plastic 1.5…5 mm with protection cover rigid plastic 1.5…2.5 mm with protection cover metal |
|
| bezel material |
Plastic
|
|
| fixing collar material |
Plastic
|
|
| integrated connection type |
USB 3.0 type A
|
|
| minimum number of matings |
1500 cycles
|
|
| IP degree of protection |
IP20 front: conforming to IEC 60529
IP20 back: conforming to IEC 60529 |
|
| ambient air temperature for operation |
-40…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| tightening torque |
1.5 N.m
|
|
| vibration resistance |
5.35 gn15 min per axis
|
|
| shock resistance |
30 gn 11 ms 3 chocks in each direction X, Y and Z
|
|
| standards |
USB 3.0
|
|
| product certifications |
CSA
UL listed |
|
| height |
28 mm
|
|
| width |
28 mm
|
|
| depth |
44 mm
|
|
| net weight |
0.0169 kg
|
| Package 1 Weight |
0.017 kg
|
|
|---|---|---|
| Package 1 Height |
0.300 dm
|
|
| Package 1 width |
0.350 dm
|
|
| Package 1 Length |
0.700 dm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
-
Harmony XB5 XB5PUSB3
