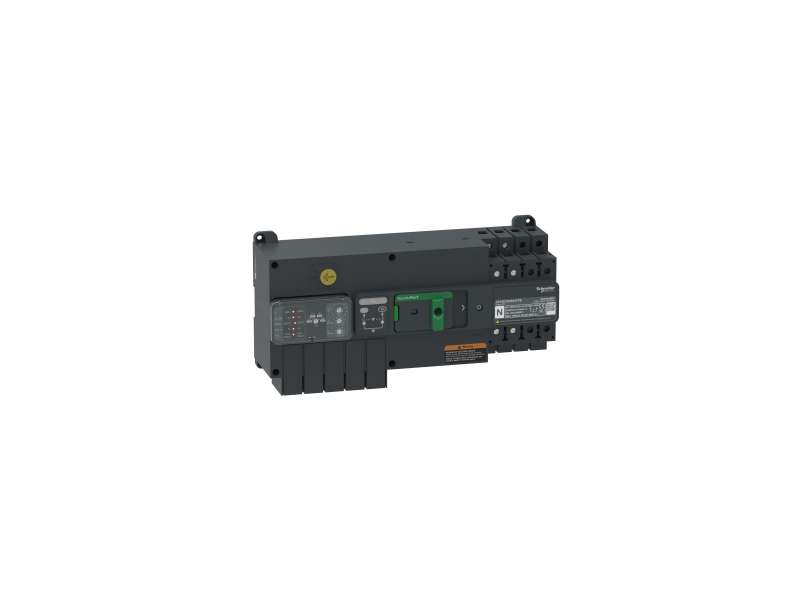

Schneider Electric Uređaj za promenu izvora napajanja, TransferPacT automatic, 63A, 230V, 2P, zakretna ručica, model 100A;TA10D2S0633TPE
transfer switch, TransferPacT automatic, 63A, 230V, 2P, rotary, frame 100A...
Price on request
transfer switch, TransferPacT automatic, 63A, 230V, 2P, rotary, frame 100A
| range of product | TransferPacT |
|---|---|
| product or component type | Automatic transfer switch |
| device application | Change source of supply |
| poles description | 2P |
| network type | AC |
| network frequency | 50/60 Hz |
| downside connection | Screwed |
| mounting mode | Fixed |
| upside connection | Screwed |
| contact position indicator | Yes |
| [Icm] rated short-circuit making capacity |
15 kA switch-disconnector alone 400 V AC at 50 Hz 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz |
| suitability for isolation | Yes |
| transfer switch class | PC |
|---|---|
| number of contact position | 3 |
| signal contacts composition |
1 NO + 2 NC 1 NC + 2 NO 2 NO |
| Utilization category | AC-33B |
| [Ue] rated operational voltage | 230 V AC 50/60 Hz |
| control type |
Rotary knob Selector switch |
| operating mode |
Automatic Manual |
| mounting support |
Plate DIN rail |
| locking options description | Padlock in OFF position |
| rated duty | Uninterrupted |
| [Ui] rated insulation voltage |
Switch: 800 V Controller: 500 V |
| [Uimp] rated impulse withstand voltage |
Switch: 6 kV Controller: 6 kV |
| [Ie] rated operational current | 63 A |
| mechanical interlocking | With mechanical interlocking |
| mechanical durability | 8000 cycles |
| [Icw] rated short-time withstand current | 5 kA during 0.1 s |
| height | 145 mm |
| width | 306 mm |
| depth | 94.5 mm |
| net weight | 3.4 kg |
| [Ith] conventional free air thermal current | 63 A at 60 °C |
| standards | IEC 60947-6-1 |
|---|---|
| product certifications |
CE CB CCC |
| IP degree of protection |
Front face: IP40 auto mode Inside the enclosure: IP20 manual mode |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| pollution degree | 3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.918 kg |
| Package 1 Height | 14.0 cm |
| Package 1 width | 21.5 cm |
| Package 1 Length | 37.0 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 4.33 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 3 Height | 30 cm |
