Main

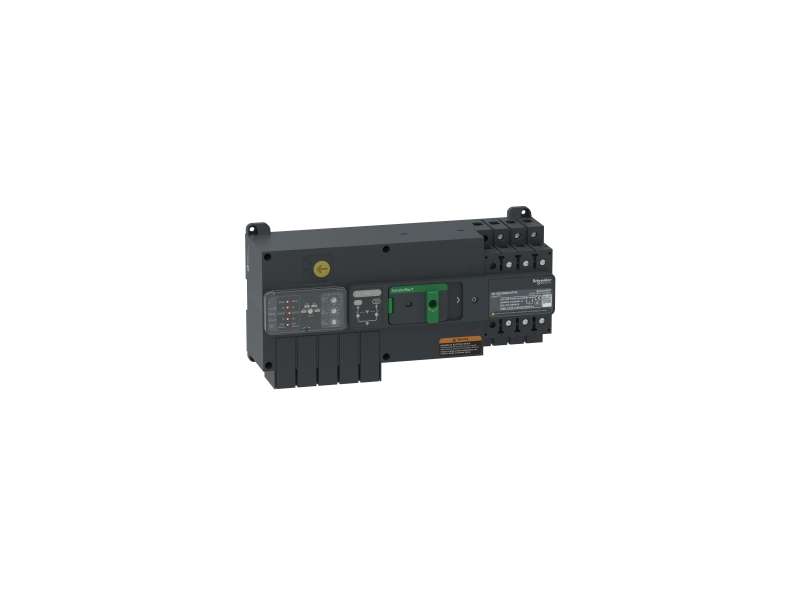

range of product	TransferPacT
product or component type	Automatic transfer switch
device application	Change source of supply
poles description	3P
network type	AC
network frequency	50/60 Hz
downside connection	Screwed
mounting mode	Fixed
upside connection	Screwed
contact position indicator	Yes
[Icm] rated short-circuit making capacity	15 kA switch-disconnector alone 400 V AC at 50 Hz 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz
suitability for isolation	Yes

Complementary

transfer switch class	PC
number of contact position	3
signal contacts composition	1 NO + 2 NC 1 NC + 2 NO 2 NO
Utilization category	AC-33B
[Ue] rated operational voltage	400 V AC 50/60 Hz
control type	4 push-buttons
operating mode	Automatic Manual
display type	LCD screen
mounting support	Plate DIN rail
locking options description	Padlock in OFF position
rated duty	Uninterrupted
[Ui] rated insulation voltage	Switch: 800 V Controller: 500 V
[Uimp] rated impulse withstand voltage	Switch: 6 kV Controller: 6 kV
[Ie] rated operational current	40 A
mechanical interlocking	With mechanical interlocking
mechanical durability	8000 cycles
[Icw] rated short-time withstand current	5 kA during 0.1 s
height	145 mm
width	306 mm
depth	94.5 mm
net weight	3.4 kg
[Ith] conventional free air thermal current	40 A at 60 °C

Environment

standards	IEC 60947-6-1
product certifications	CE CB CCC
IP degree of protection	Front face: IP40 auto mode Inside the enclosure: IP20 manual mode
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…85 °C
pollution degree	3

Packing Units

Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	3.35 kg
Package 1 Height	13.6 cm
Package 1 width	21.1 cm
Package 1 Length	36.7 cm
Unit Type of Package 2	S03
Number of Units in Package 2	1
Package 2 Weight	3.791 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
