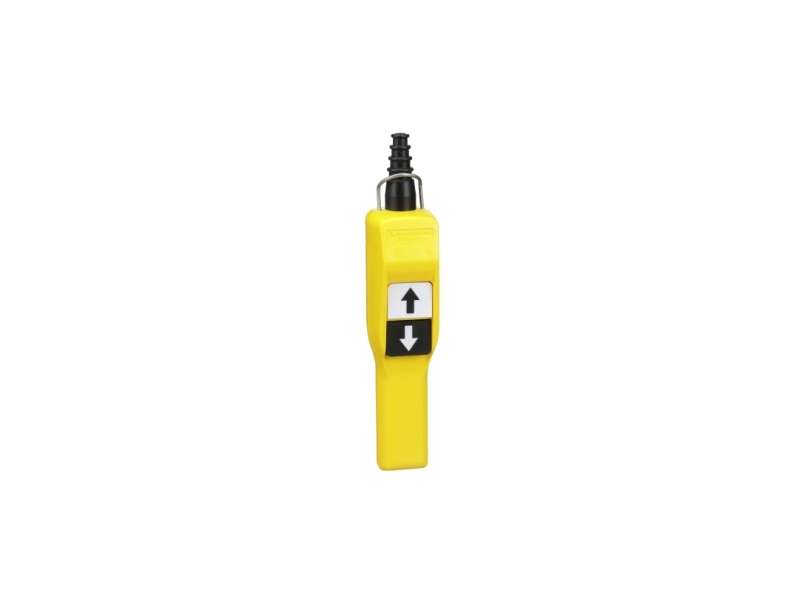

Schneider Electric Upravljačka stanica XAC-A sa rukohvatom - 2 tastera;XACA201
Harmony XAC, Pendant control station, plastic, yellow, pistol grip, 2 push buttons with 1 NO...
VAT-exclusive price: 11.152,00 |
VAT-inclusive price: 13.382,40 |
Harmony XAC, Pendant control station, plastic, yellow, pistol grip, 2 push buttons with 1 NO
| range of product | Harmony XAC |
|---|---|
| product or component type | Pendant control station |
| device short name | XACA pistol grip |
| control station type | Double insulated |
|---|---|
| enclosure material | Polypropylene |
| control type | Intuitive |
| electrical circuit type | Control circuit |
| enclosure type | Complete ready for use |
| control station application | Control of single speed hoist motor |
| control station composition | 2 push-buttons |
| control button type |
First push-button 1 NO raise, slow Second push-button 1 NO lower, slow |
| product compatibility | ZB2BE101 for each direction |
| mechanical interlocking | With mechanical interlocking |
| control station colour | Yellow |
| connections - terminals |
Screw clamp terminals, 1 x 2.5 mm² with or without cable end Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| standards |
EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60204-32 UL 508 |
| product certifications |
CSA UL |
| protective treatment | TH |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…70 °C |
| vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 100 gn conforming to IEC 60068-2-27 |
| overvoltage category | Class II conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 50102 |
| mechanical durability | 1000000 cycles |
| cable entry | Rubber sleeve with stepped entry 7…15 mm |
| contact code designation |
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| contact operation | Slow-break |
| maximum resistance across terminals | 25 MOhm |
| operating force | 13…15 N |
| short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| rated operational power in W |
40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| terminals description ISO n°1 | (13-14)NO |
| terminal identifier |
(11-12)NC (13-14)NO |
| net weight | 0.27 kg |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 252 g |
| Package 1 Height | 7.5 cm |
| Package 1 width | 6 cm |
| Package 1 Length | 27 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 96 |
| Package 2 Weight | 40.548 kg |
| Package 2 Height | 77 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 60 cm |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 6 |
| Package 3 Weight | 1.82 kg |
| Package 3 Height | 15 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
| Warranty | 18 months |
|---|
