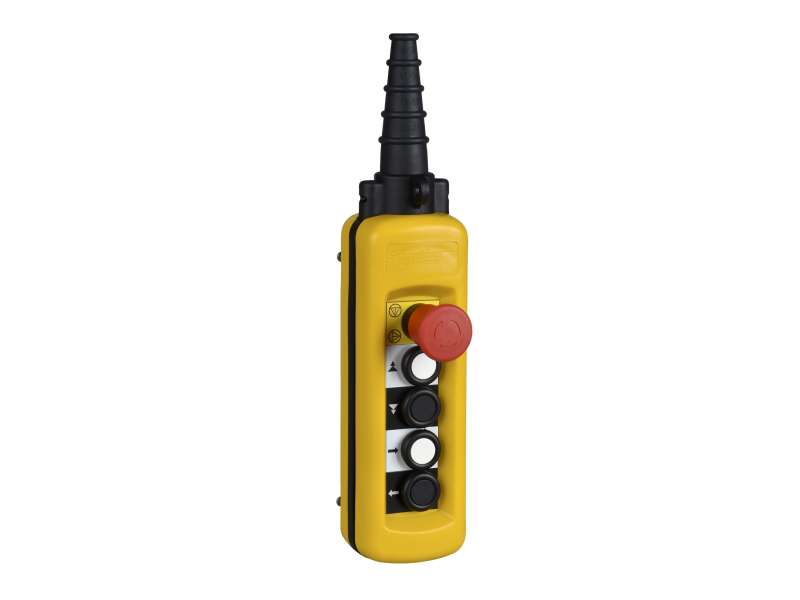

Schneider Electric Upravljačka stanica XAC-A - 4 tastera 1 nužno isključenje;XACA49141
Pendant control station XAC-A - 4 pushbuttons 1 Emergency stop...
VAT-exclusive price: 33.887,00 |
VAT-inclusive price: 40.664,40 |
Pendant control station XAC-A - 4 pushbuttons 1 Emergency stop
| range of product |
Harmony XAC
|
|
|---|---|---|
| product or component type |
Pendant control station
|
|
| device short name |
XACA
|
| control station type |
Double insulated
|
|
|---|---|---|
| enclosure material |
Polypropylene
|
|
| electrical circuit type |
Control circuit
|
|
| enclosure type |
Complete ready for use
|
|
| control station application |
Control of 2-speed hoist motor
|
|
| control station composition |
4 push-buttons + 1 emergency stop
|
|
| control button type |
First push-button 1 NC + 2 NO raise, slow-fast
Second push-button 1 NC + 2 NO lower, slow-fast Emergency stop push-button Ø 40 mm 3 NC trigger action Fourth push-button 1 NC + 2 NO left, slow-fast Third push-button 1 NC + 2 NO right, slow-fast |
|
| product compatibility |
XENT1192 for emergency stop
XENG1191 for each direction |
|
| mechanical interlocking |
With mechanical interlocking between pairs
|
|
| control station colour |
Yellow
|
|
| connections - terminals |
Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end |
|
| standards |
CSA C22.2 No 14
EN/IEC 60947-5-1 EN/IEC 60947-5-5 EN/ISO 13850: 2006 UL 508 EN/IEC 60204-32 |
|
| product certifications |
GOST
CCC |
|
| protective treatment |
TH
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
100 gn conforming to IEC 60068-2-27
|
|
| overvoltage category |
Class II conforming to IEC 61140
|
|
| IP degree of protection |
IP65 conforming to IEC 60529
|
|
| IK degree of protection |
IK08 conforming to EN 50102
|
|
| mechanical durability |
1000000 cycles
|
|
| cable entry |
Rubber sleeve with stepped entry 8…26 mm
|
|
| contact code designation |
A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| [Ui] rated insulation voltage |
Emergency stop contact: 400 V (pollution degree 3) conforming to IEC 60947-1
600 V (pollution degree 3) |
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1
|
|
| contact operation |
Staggered
Slow-break |
|
| maximum resistance across terminals |
25 MOhm
|
|
| operating force |
14 N emergency stop
18 N push-button |
|
| short-circuit protection |
10 A fuse protection by cartridge fuse type gG
|
|
| rated operational power in W |
40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
|
| terminals description ISO n°1 |
(21-22)NC
(33-34)NO_CL (13-14)NO |
|
| terminals description ISO n°2 |
(11-12)NC
(31-32)NC (21-22)NC |
|
| terminal identifier |
(11-12)NC
(13-14)NO |
|
| net weight |
0.7 kg
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
600 g
|
|
| Package 1 Height |
8.5 cm
|
-
Harmony XAC XACA49141
