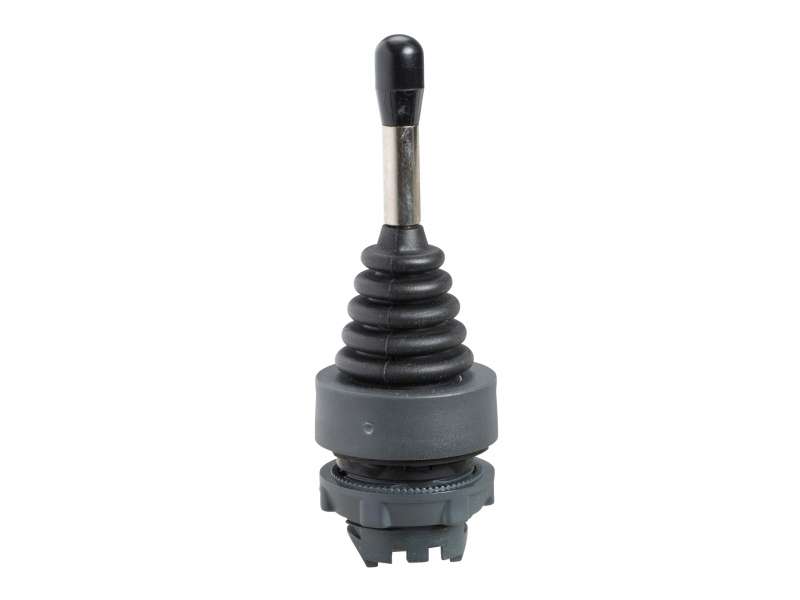

Schneider Electric Upravljačka palica Ø22 4-smera bez povratka 1NO po smeru;ZD5PA14
Joystick controller Ø22 4-direction stay put 1NO per direction...
VAT-exclusive price: 6.427,00 |
VAT-inclusive price: 7.712,40 |
Joystick controller Ø22 4-direction stay put 1NO per direction
| range of product |
Harmony XB5
|
|
|---|---|---|
| product or component type |
Head for joystick controller
|
|
| device short name |
ZD5
|
|
| bezel material |
Plastic
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| type of operator |
stay put
|
|
| operator profile |
54 mm long operating shaft
|
|
| operator direction information |
4 directions
|
| CAD overall width |
30 mm
|
|
|---|---|---|
| CAD overall height |
47 mm
|
|
| CAD overall depth |
85 mm
|
|
| net weight |
0.022 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| mechanical durability |
1000000 cycles
|
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| electrical shock protection class |
Class II conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
|
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-1
JIS C8201-5-1 UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-1 |
|
| product certifications |
UL listed
DNV LROS (Lloyds register of shipping) CSA BV RINA GL |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Package 1 Weight |
0.036 kg
|
|
|---|---|---|
| Package 1 Height |
0.880 dm
|
|
| Package 1 width |
0.340 dm
|
|
| Package 1 Length |
0.540 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure |
-
Harmony XB5 ZD5PA14
