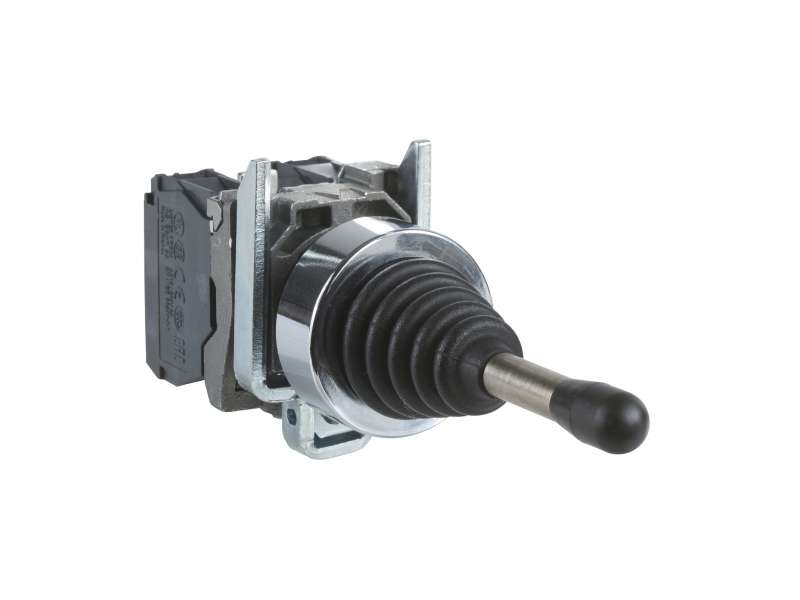

Name: Schneider Electric Upravljačka palica Ø22 2-smera bez povratka 1NO po smeru;XD5PA12
Brand: Schneider Electric
SKU: XD5PA12
Price: 13658.40 RSD
Availability: OutOfStock

Schneider Electric Upravljačka palica Ø22 2-smera bez povratka 1NO po smeru;XD5PA12

Joystick controller, Ø22, 2-direction, stay put, 1 NO per direction...

Brand: Schneider Electric
Product Code: XD5PA12
Availability: Check availability

VAT-exclusive price: 11.382,00

VAT-inclusive price: 13.658,40

Qnt:

Joystick controller, Ø22, 2-direction, stay put, 1 NO per direction

Main
range of product	Harmony XB5
product or component type	Joystick controller
device short name	XD5
bezel material	Plastic
fixing collar material	Plastic
mounting diameter	22 mm
sale per indivisible quantity	1
shape of signaling unit head	Round
type of operator	stay put
operator profile	54 mm long operating shaft
operator position information	3 positions
operator direction information	2 directions
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

Complementary
height	47 mm
width	30 mm
depth	108 mm
resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
notch per direction	1
contacts type and composition	1 NO
contact operation	Slow-break
contacts usage	Standard
positive opening	Without
mechanical durability	1000000 cycles
device presentation	Complete product
tightening torque	0.8…1.2 N.m conforming to EN 60947-1
shape of screw head	Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver
contacts material	Silver alloy (Ag/Ni)
short-circuit protection	10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	EN 60947-1 6 kV
[Ie] rated operational current	0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
electrical reliability	Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
electrical shock protection class	Class II conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK03 conforming to IEC 50102
standards	EN/IEC 60947-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1
product certifications	DNV RINA BV CSA UL listed GL LROS (Lloyds register of shipping)
