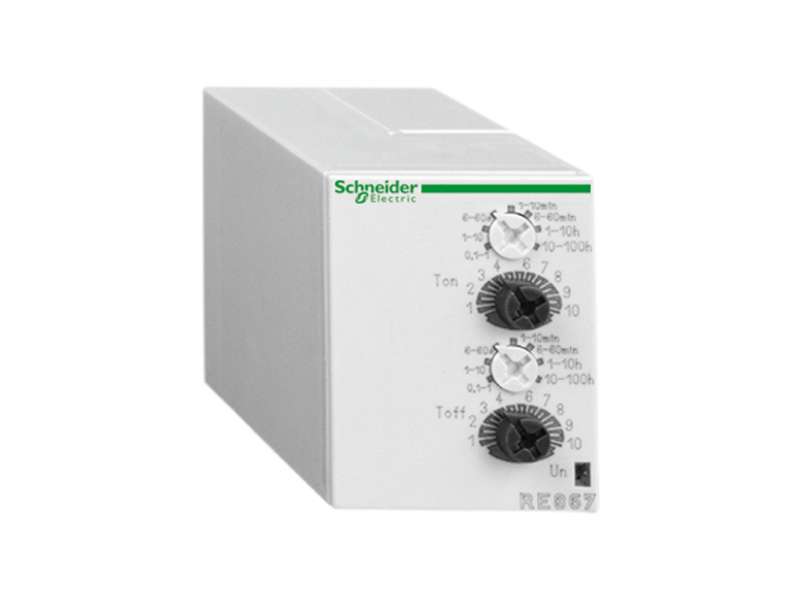

Schneider Electric Univerzalni utični vremenski relej - 0.1 s..60 min - 24..240 V AC - 2 OC ; RE88867305
universal plug-in timing relay - 0.1 s..60 mn - 24..240 V AC - 2 OC...
VAT-exclusive price: 13.238,99 |
VAT-inclusive price: 15.886,79 |
universal plug-in timing relay - 0.1 s..60 mn - 24..240 V AC - 2 OC
| range of product |
Zelio Time
|
|
|---|---|---|
| product or component type |
Universal timing relay
|
|
| discrete output type |
Relay
|
|
| contacts type and composition |
2 C/O
|
|
| width pitch dimension |
35 mm
|
|
| component name |
RE88867
|
|
| time delay type |
Di
W Ht At D B Ac A H C |
|
| time delay range |
0.1...1 s
1...10 min 6...60 min 1...10 s 10...100 h 6...60 s 1...10 h |
| electrical connection |
Plug-in sub-base 11 pin(s)
|
|
|---|---|---|
| contacts material |
AgNi (cadmium free)
|
|
| [In] rated current |
8 A
|
|
| [Us] rated supply voltage |
24 V DC
24...240 V AC 50/60 Hz |
|
| voltage range |
0.85...1.1 Us
|
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.5 % conforming to IEC 61812-1
|
|
| temperature drift |
+/- 0.05 %/°C
|
|
| voltage drift |
+/- 0.2 %/V
|
|
| setting accuracy of time delay |
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
|
|
| minimum pulse duration |
100 ms under load
30 ms |
|
| maximum reset time |
100 ms on de-energisation
|
|
| on-load factor |
100 %
|
|
| maximum power consumption |
32 VA at 240 V
|
|
| maximum power consumption |
0.6 W at 24 V
1.5 W at 240 V |
|
| breaking capacity |
2000 VA
|
|
| breaking capacity |
80 W
|
|
| minimum switching current |
10 mA
|
|
| maximum switching current |
8 A
|
|
| maximum switching voltage |
250 V
|
|
| electrical durability |
100000 cycles at 8 A, 250 V for resistive load
|
|
| mechanical durability |
5000000 cycles
|
|
| [Uimp] rated impulse withstand voltage |
5 kV for 1.2…50 µs conforming to IEC 60664-1
5 kV for 1.2…50 µs conforming to IEC 61812-1 |
|
| marking |
CE
|
|
| creepage distance |
4 kV/3 conforming to IEC 60664-1
|
|
| surge withstand |
1 kV differential mode conforming to IEC 61000-4-5 level 3
2 kV common mode conforming to IEC 61000-4-5 level 3 |
|
| local signalling |
LED indicator (green)flashing: timing in progress:
LED indicator (green)on steady: relay energised, no timing in progress: LED indicator (green)pulsing: relay energised, no timing in progress (except functions Di-D): |
|
| net weight |
0.08 kg
|
| immunity to microbreaks |
10 ms
|
|
|---|---|---|
| dielectric strength |
2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
|
|
| standards |
73/23/EEC
EN 50081-1/2 89/336/EEC 93/68/EEC IEC 61812-1 IEC 60669-2-3 EN 50082-1/2 |
|
| product certifications |
CSA
CURus GL |
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-30…60 °C
|
|
| IP degree of protection |
IP20 (terminal block) conforming to IEC 60529
IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 |
|
| vibration resistance |
0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
|
|
| relative humidity |
93 % without condensation conforming to IEC 60068-2-3
|
|
| resistance to electrostatic discharge |
6 kV in contact conforming to IEC 61000-4-2 level 3
8 kV in air conforming to IEC 61000-4-2 level 3 |
|
| resistance to electromagnetic fields |
10 V/m 80 MHz to 1 GHz conforming to ENV 50140/204 level 3
10 V/m 80 MHz to 1 GHz conforming to IEC 61000-4-3 level 3 |
|
| resistance to fast transients |
1 kV (capacitive connecting clip) conforming to IEC 61000-4-4 level 3
2 kV (direct) conforming to IEC 61000-4-4 level 3 |
|
| immunity to radioelectric fields |
10 V (0.15...80 MHz) conforming to ENV 50141 (IEC 61000-4-6)
|
|
| immunity to voltage dips |
30 % / 10 ms conforming to IEC 61000-4-11
60 % / 100 ms conforming to IEC 61000-4-11 95 % / 5 s conforming to IEC 61000-4-11 |
|
| disturbance radiated/conducted |
Class B conforming to EN 55022 (EN 55011 group 1)
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
85 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
5 cm
|
|
| Package 1 Length |
9.7 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
90
|
|
| Package 2 Weight |
8.363 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
|---|---|---|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
-
