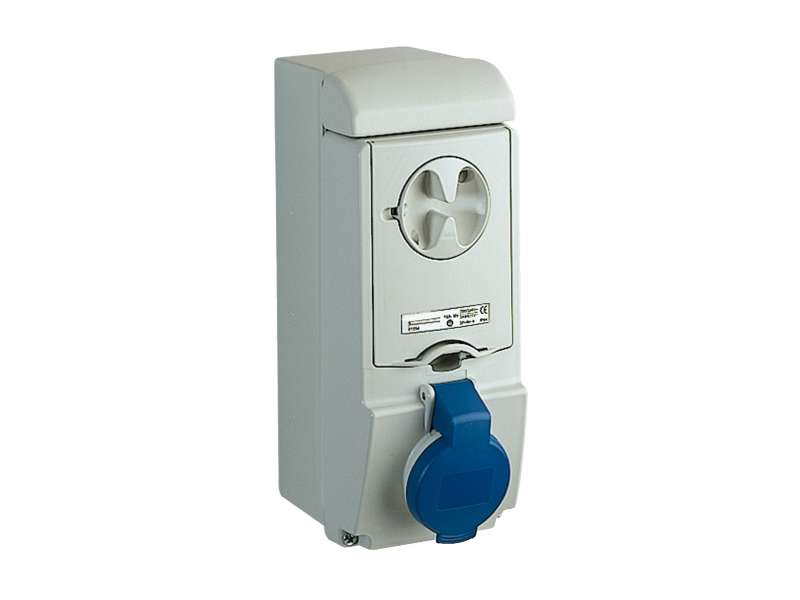

Schneider Electric Unika utičnica sa blokadom - 16 A - 2P + E - 200...250 V AC - IP44 - nadzidna ; 83131
Unika interlocked socket - 16 A - 2P + E - 200...250 V AC - IP44 - wall...
VAT-exclusive price: 10.542,00 |
VAT-inclusive price: 12.650,40 |
Unika interlocked socket - 16 A - 2P + E - 200...250 V AC - IP44 - wall
| range |
PratiKa
|
|
|---|---|---|
| product or component type |
Interlocked socket
|
|
| device short name |
Unika socket
|
|
| plug, socket category |
Low voltage
|
|
| poles description |
2P + E
|
|
| network type |
AC
|
|
| outlet standard |
Industrial
|
| mounting mode |
Wall-mounted
|
|
|---|---|---|
| [In] rated current |
16 A
|
|
| [Ue] rated operational voltage |
200...250 V
|
|
| network frequency |
50/60 Hz
|
|
| ground lug clockwise position |
6 h
|
|
| protection type |
Fuse
|
|
| fuse type |
Cylindrical
|
|
| fuse size |
10.3 x 38 mm
|
|
| plug, socket material |
Housing: self-extinguishing engineering polymer
|
|
| contacts material |
Sleeves: nickel plated brass
|
|
| connections - terminals |
Captive screws
|
|
| maximum cable cross section |
10 mm²
|
|
| maximum cable outer diameter |
25 mm
|
|
| cable entry |
Cable gland
|
|
| thread type |
Pg 21
|
|
| net weight |
1.04 kg
|
|
| base dimension |
103 x 255 mm
|
|
| height |
255 mm
|
|
| width |
103 mm
|
|
| depth |
150 mm
|
|
| colour |
Grey (RAL 7035)
|
|
| voltage colour |
Blue
|
| standards |
IEC 60309-2
IEC 60309-1 |
|
|---|---|---|
| IP degree of protection |
IP44 conforming to IEC 60529
|
|
| IK degree of protection |
IK09 conforming to EN 62262
|
|
| fire resistance |
750 °C conforming to IEC 60695-2-11
|
|
| relative humidity |
50 % at 40 °C
70 % at 30 °C 90 % at 20 °C |
|
| ambient air temperature for operation |
35 °C ( 86400 s )
-25…40 °C |
| Package 1 Weight |
1.177 kg
|
|
|---|---|---|
| Package 1 Height |
0.100 dm
|
|
| Package 1 width |
0.170 dm
|
|
| Package 1 Length |
0.260 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information |
|
-
Pratika 83131
