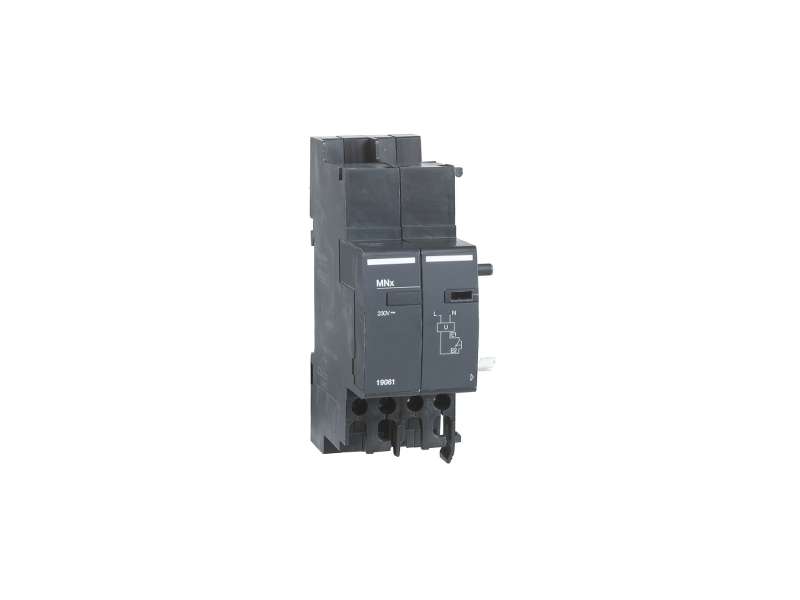

Schneider Electric Undervoltage release, Acti9 NG125, MNx, 220VAC to 240VAC;19061
Undervoltage release, Acti9 NG125, MNx, 220VAC to 240VAC...
Price on request
Undervoltage release, Acti9 NG125, MNx, 220VAC to 240VAC
| range of product | Acti9 |
|---|---|
| product or component type | Undervoltage release |
| device short name | MNx |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz |
| control type | Standard |
| 9 mm pitches | 9 |
| range compatibility |
Acti 9 Vigi NG125 Acti 9 (Acti9 NG125LMA) Acti 9 (Acti9 NG125NA) Acti 9 (Acti9 NG125) |
|---|---|
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to EN/IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-5-1 |
| local signalling | Action indicator |
| mounting mode | Fixed |
| mounting support | 35 mm symmetrical DIN rail |
| height | 109 mm |
| width | 78 mm |
| depth | 55 mm |
| net weight | 0.199 kg |
| electrical durability | 10000 cycles conforming to EN/IEC 60947-5-1 |
| connections - terminals |
Plate terminal - 1 cable(s) 0.5…2.5 mm² - rigid Plate terminal - 1 cable(s) 0.5…1.5 mm² - flexible Plate terminal - 1 cable(s) 0.5…1.5 mm² - flexible with ferrule Plate terminal - 2 cable(s) 2.5 mm² - flexible Plate terminal - 2 cable(s) 2.5 mm² - rigid Plate terminal - 2 cable(s) 1.5 mm² - flexible with ferrule |
| wire stripping length | 10 mm |
| tightening torque | 1 N.m |
| standards | EN/IEC 60947-5-1 |
|---|---|
| product certifications |
ASEFA KEMA LCIE ASTA |
| IP degree of protection |
IP20 B conforming to EN/IEC 60947-5-1 IP4 conforming to EN/IEC 60947-5-1 |
| pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| overvoltage category | II |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| relative humidity | 95 % at 55 °C |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.8 cm |
| Package 1 Width | 5.5 cm |
| Package 1 Length | 10.9 cm |
| Package 1 Weight | 199.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 8.238 kg |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 4 |
| Package 3 Height | 11.0 cm |
| Package 3 Width | 8.5 cm |
| Package 3 Length | 23.7 cm |
| Package 3 Weight | 862.0 g |
| Warranty | 18 months |
|---|
